DMC62D3SV - 60V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

General-purpose interfacing switches Power-management functions Analog

Features

  • Low On-Resistance.
  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Ultra-Small Surface-Mount Package.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/quality/product-definitions/.
  • An automotive-compliant part is available.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text

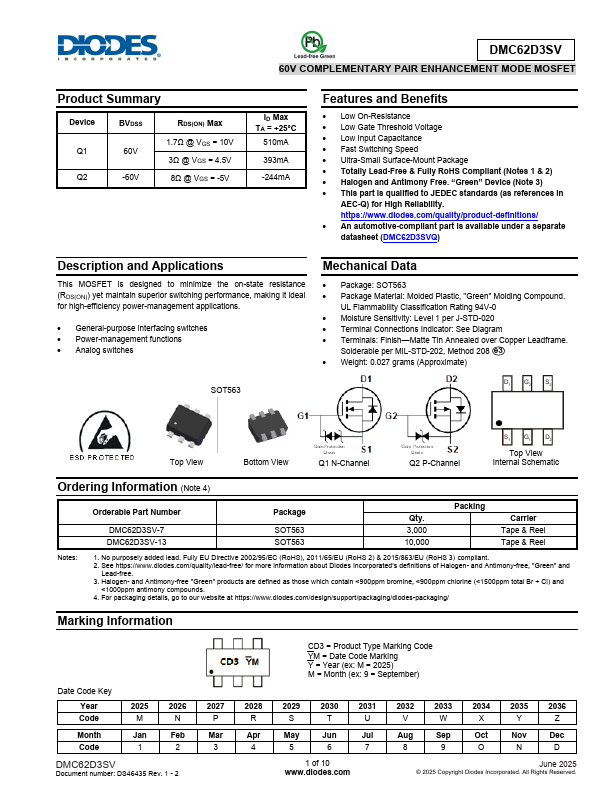

DMC62D3SV 60V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 Q2 BVDSS 60V -60V RDS(ON) Max 1.7Ω @ VGS = 10V 3Ω @ VGS = 4.5V 8Ω @ VGS = -5V ID Max TA = +25°C 510mA 393mA -244mA Features and Benefits • Low On-Resistance • Low Gate Threshold Voltage • Low Input Capacitance • Fast Switching Speed • Ultra-Small Surface-Mount Package • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.
