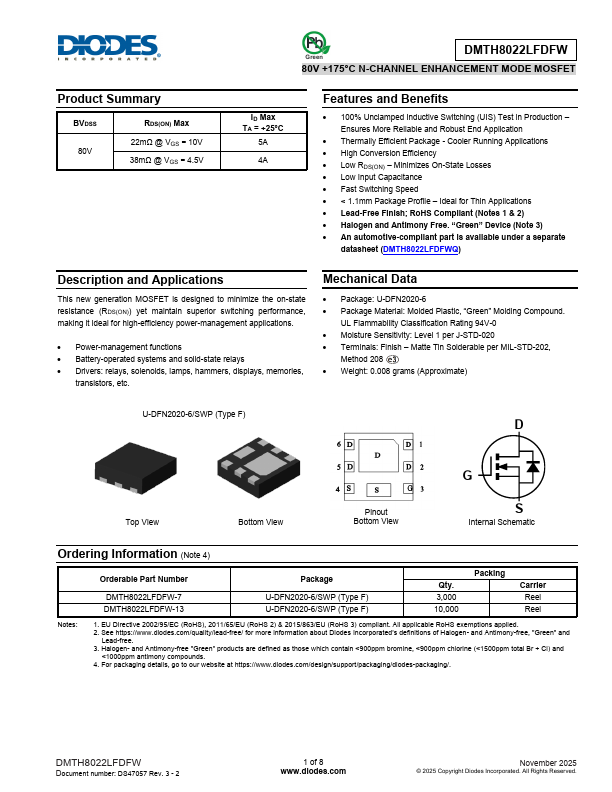

DMTH8022LFDFW
DMTH8022LFDFW is 80V N-CHANNEL ENHANCEMENT MODE MOSFET manufactured by Diodes Incorporated.
Features and Benefits
- 100% Unclamped Inductive Switching (UIS) Test in Production
- Ensures More Reliable and Robust End Application
- Thermally Efficient Package
- Cooler Running Applications
- High Conversion Efficiency
- Low RDS(ON)
- Minimizes On-State Losses
- Low Input Capacitance
- Fast Switching Speed
- < 1.1mm Package Profile
- Ideal for Thin Applications
- Lead-Free Finish; Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- An automotive-pliant part is available under a separate datasheet (DMTH8022LFDFWQ)
Description and Applications
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
- Power-management functions
- Battery-operated systems and solid-state relays
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
Mechanical Data
- Package: U-DFN2020-6
- Package Material: Molded Plastic, “Green” Molding pound.
UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Solderable per MIL-STD-202,
Method 208
- Weight: 0.008 grams (Approximate)
U-DFN2020-6/SWP (Type F)
Top View
Bottom View
Pinout Bottom View
Internal Schematic
Ordering Information (Note 4)
Notes:

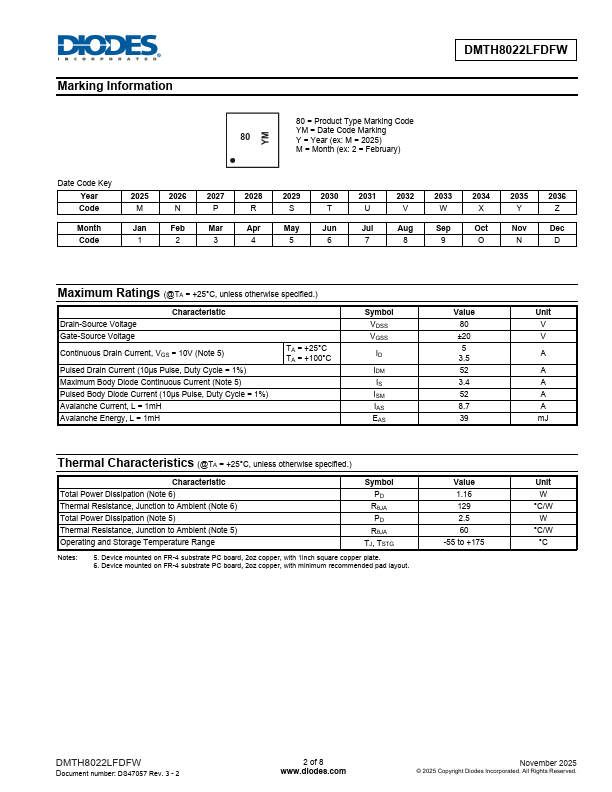

Orderable Part...
