FCX1147A Datasheet 12V PNP LOW SATURATION TRANSISTOR

Manufacturer: Diodes Incorporated

📥 Download Datasheet

FCX1147A 12v pnp low saturation transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FCX1147A
Manufacturer	Diodes Incorporated
File Size	632.25 KB
Description	12V PNP LOW SATURATION TRANSISTOR
Download	FCX1147A Download (PDF)

Overview

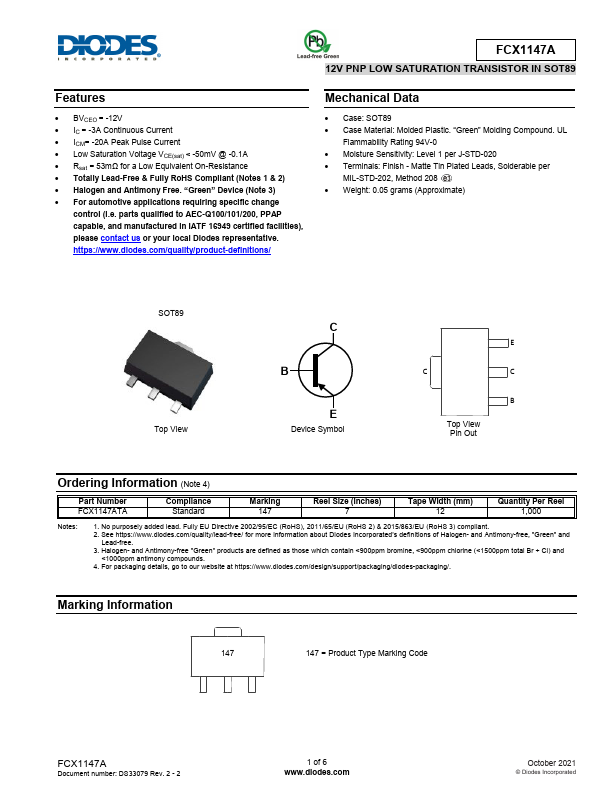

FCX1147A 12V PNP LOW SATURATION TRANSISTOR IN SOT89.

Key Features

BVCEO = -12V.
IC = -3A Continuous Current.
ICM= -20A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -50mV @ -0.1A.
Rsat = 53mΩ for a Low Equivalent On-Resistance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
