FCX1149A Datasheet 25V PNP SILICON POWER (SWITCHING) TRANSISTOR

Manufacturer: Diodes Incorporated

📥 Download Datasheet

FCX1149A 25v pnp silicon power (switching) transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FCX1149A
Manufacturer	Diodes Incorporated
File Size	263.45 KB
Description	25V PNP SILICON POWER (SWITCHING) TRANSISTOR
Download	FCX1149A Download (PDF)

Overview

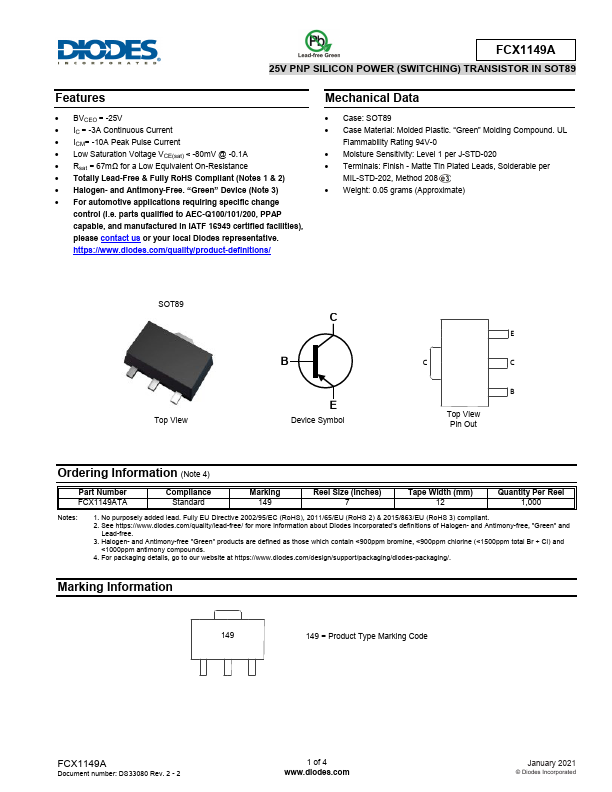

FCX1149A 25V PNP SILICON POWER (SWITCHING) TRANSISTOR IN SOT89.

Key Features

BVCEO = -25V.
IC = -3A Continuous Current.
ICM= -10A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -80mV @ -0.1A.
Rsat = 67mΩ for a Low Equivalent On-Resistance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen- and Antimony-Free. “Green” Device (Note 3).
For automotive.
