FMMT614 Datasheet 100V NPN DARLINGTON MEDIUM POWER TRANSISTOR

Manufacturer: Diodes Incorporated

📥 Download Datasheet

FMMT614 100v npn darlington medium power transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FMMT614
Manufacturer	Diodes Incorporated
File Size	536.11 KB
Description	100V NPN DARLINGTON MEDIUM POWER TRANSISTOR
Download	FMMT614 Download (PDF)

Overview

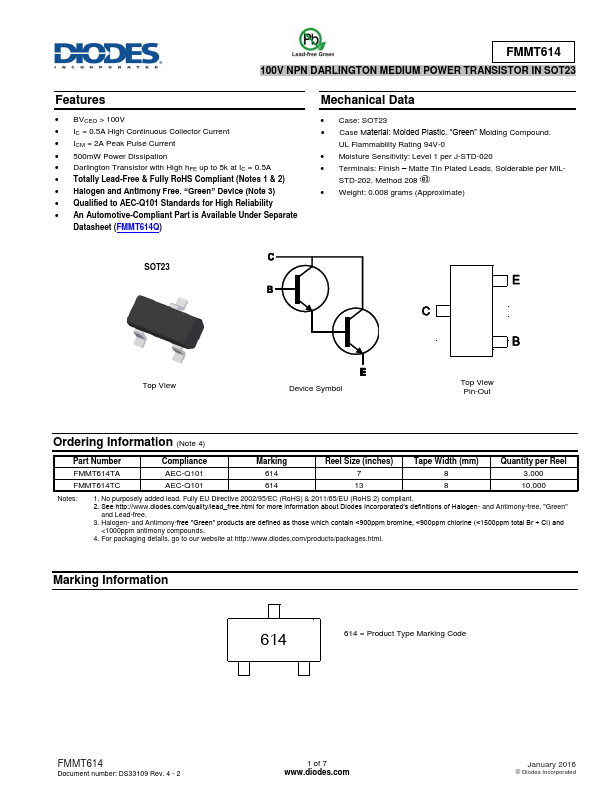

FMMT614 100V NPN DARLINGTON MEDIUM POWER TRANSISTOR IN SOT23.

Key Features

BVCEO > 100V.
IC = 0.5A High Continuous Collector Current.
ICM = 2A Peak Pulse Current.
500mW Power Dissipation.
Darlington Transistor with High hFE up to 5k at IC = 0.5A.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
An Automotive-Compliant Part is Available Under Separate Datasheet (FMMT614Q) Mechanical Data.
Case: SOT23.
C.
