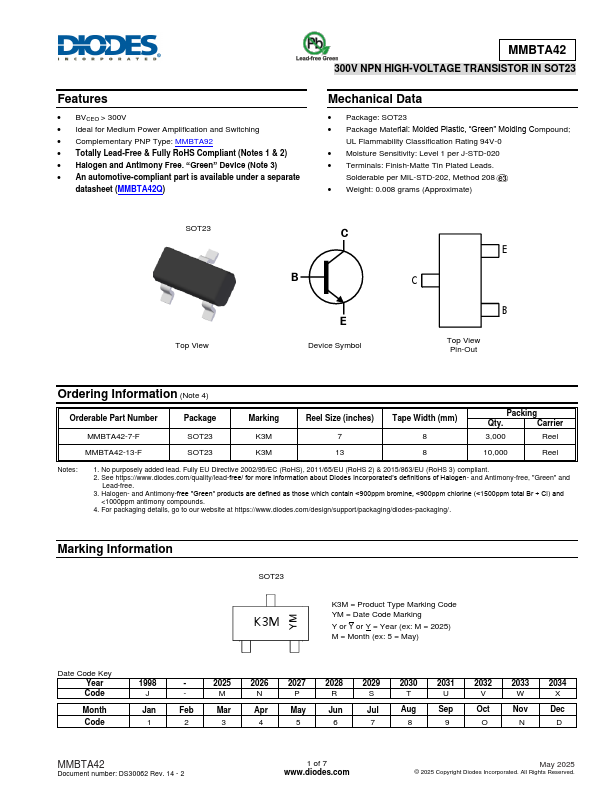

MMBTA42
MMBTA42 is 300V NPN HIGH-VOLTAGE TRANSISTOR manufactured by Diodes Incorporated.
Features
- BVCEO > 300V
- Ideal for Medium Power Amplification and Switching
- plementary PNP Type: MMBTA92
- Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- An automotive-pliant part is available under a separate datasheet (MMBTA42Q)
300V NPN HIGH-VOLTAGE TRANSISTOR IN SOT23
Mechanical Data
- Package: SOT23
- Package Material: Molded Plastic, “Green” Molding pound;
UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish-Matte Tin Plated Leads.
Solderable per MIL-STD-202, Method 208
- Weight: 0.008 grams (Approximate)
SOT23 Top View
Device Symbol Symbolhematic
Top View Pin-Out Symbolhematic
Ordering Information (Note 4)
Orderable Part Number MMBTA42-7-F MMBTA42-13-F
Package SOT23 SOT23
Marking K3M K3M
Reel Size (inches) 7 13
Tape Width (mm) 8 8
Packing
Qty.
Carrier
3,000
Reel
10,000
Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"...
