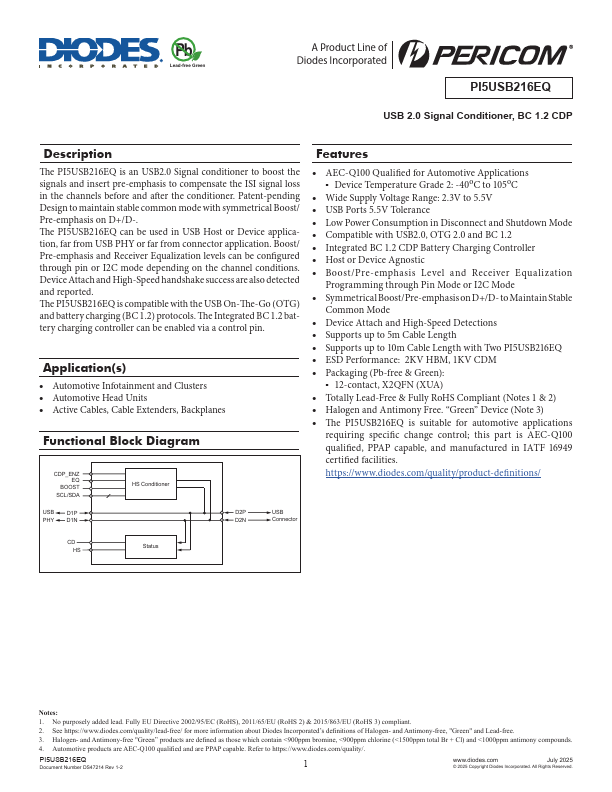

Pb Lead-free Green A Product Line of Diodes Incorporated USB 2.0 Signal Conditioner, BC 1.2 CDP Description Features The PI5USB216EQ is an USB2.0 Signal conditioner to boost the signals and insert pre-emphasis to pensate the ISI signal loss in the channels before and after the conditioner. Patent-pending Design to maintain stable mon mode with symmetrical Boost/ Pre-emphasis on D+/D-. The PI5USB216EQ can be used in USB Host or Device application, far from USB PHY or far from connector application. Boost/ Pre-emphasis and Receiver Equaliza­tion levels can be configured through pin or I2C mode depending on the channel conditions. Device Attach and High-Speed handshake...
