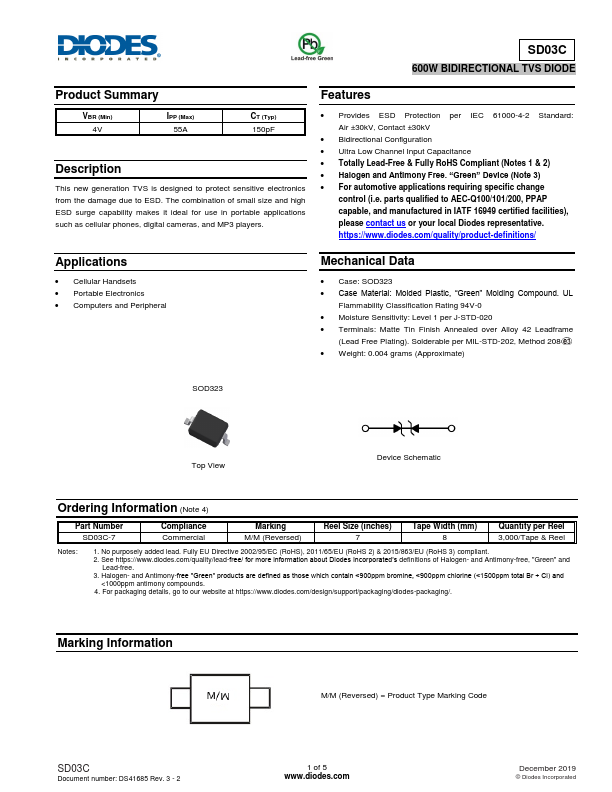

SD03C Datasheet (600W BIDIRECTIONAL TVS DIODE)

Part: SD03C
Manufacturer: Diodes Incorporated (official site)
Size: 301.96 KB

SD03C Key Features

Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
Bidirectional Configuration
Ultra Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive

Other SD03C Datasheets

Manufacturer	Part Number	Description
Windforce Windforce	SD03C	Low capacitance bidirectional TVS Diodes
Leiditech	SD03C	BIDIRECTIONAL TVS DIODE
Kexin Semiconductor	SD03C	TVS Diodes
SeCoS Halbleitertechnologie GmbH	SD03CL	250W Plastic Encapsulate ESD Protection Diodes
SeCoS Halbleitertechnologie GmbH	SD03CL-C	350W Plastic Encapsulate ESD Protection Diodes

View all SD03C datasheets →

SD03C Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The bination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
