SD03 Key Features
- Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
- Ultra-Low Channel Input Capacitance
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive
- Part: SD03
- Manufacturer: Diodes Incorporated (official site)
- Size: 242.43 KB
Other SD03 Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
Leiditech |
SD03 | 500W Unidirectional TVS Diode |
KD |
SD03 | STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY |
SeCoS Halbleitertechnologie GmbH |
SD03 | Transient Voltage Suppressors Diode |
Semiware Semiconductor |
SD03 | Electrostatic Discharge Protection Device |
Kexin Semiconductor |
SD03 | TVS Diodes |

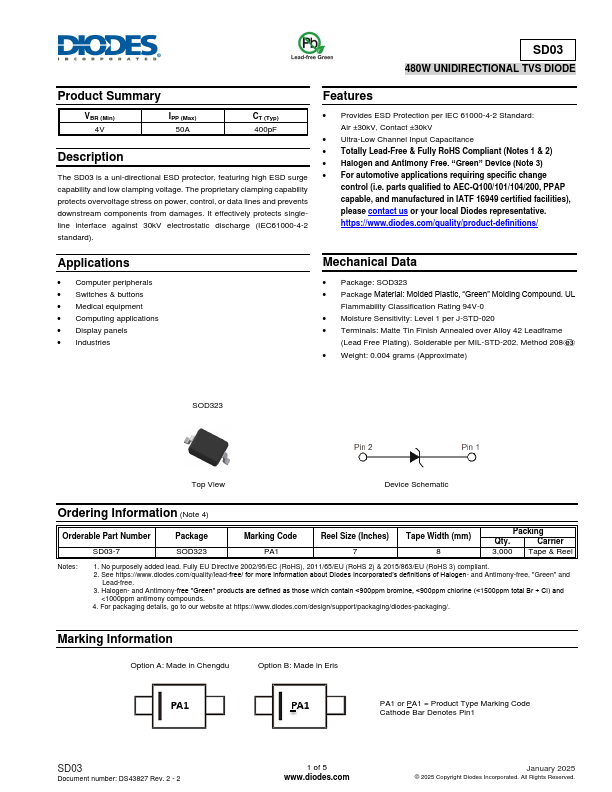

SD03 Description
The SD03 is a uni-directional ESD protector, featuring high ESD surge capability and low clamping voltage. The proprietary clamping capability protects overvoltage stress on power, control, or data lines and prevents downstream ponents from damages. It effectively protects singleline interface against 30kV electrostatic discharge (IEC61000-4-2 standard).
