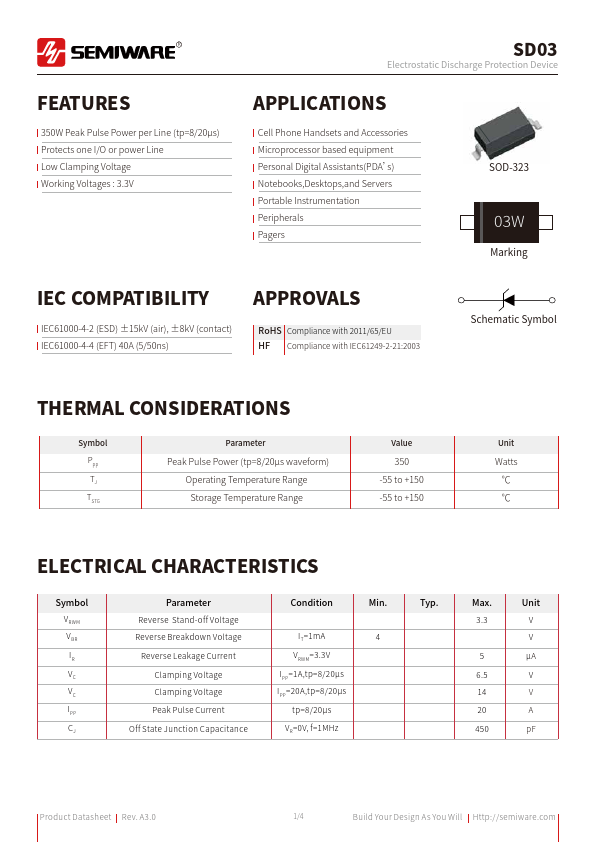

SD03
FEATURES
350W Peak Pulse Power per Line (tp=8/20μs) Protects one I/O or power Line Low Clamping Voltage Working Voltages : 3.3V
Electrostatic Discharge Protection Device
APPLICATIONS
Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants(PDA’s) Notebooks,Desktops,and Servers Portable Instrumentation Peripherals Pagers
SOD-323
03W
Marking
IEC PATIBILITY
IEC61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC61000-4-4 (EFT) 40A (5/50ns)
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
Schematic Symbol
THERMAL CONSIDERATIONS
Symbol Ppp TJ TSTG
Parameter Peak Pulse Power (tp=8/20μs waveform)
Operating Temperature Range Storage Temperature Range
Value 350 -55 to +150 -55 to +150
Unit Watts
℃ ℃
ELECTRICAL CHARACTERISTICS
Symbol
VRWM VBR IR VC VC IPP CJ
Parameter
Reverse Stand-off Voltage Reverse Breakdown Voltage
Reverse Leakage Current Clamping Voltage Clamping Voltage Peak Pulse Current
Off State Junction...
