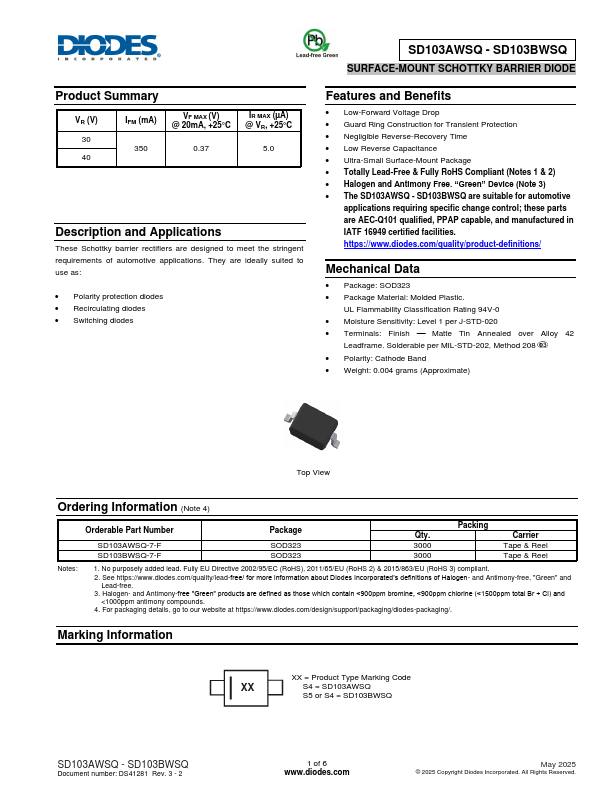

SD103AWSQ Overview
and Applications These Schottky barrier rectifiers are designed to meet the stringent requirements of automotive applications. They are ideally suited to use as: Polarity protection diodes Recirculating diodes Switching diodes SD103AWSQ - SD103BWSQ SURFACE-MOUNT SCHOTTKY BARRIER DIODE.
SD103AWSQ Key Features
- Low-Forward Voltage Drop
- Guard Ring Construction for Transient Protection
- Negligible Reverse-Recovery Time
- Low Reverse Capacitance
- Ultra-Small Surface-Mount Package
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- The SD103AWSQ
- SD103BWSQ are suitable for automotive
SD103AWSQ Applications
- Polarity protection diodes
