SD103AWS - (SD103AWS - SD103CWS) SURFACE MOUNT SCHOTTKY BARRIER

Key Features

  • Low turn-on voltage.
  • Fast switching.
  • PN Junction Guard Ring for Transient and ESD Protection.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD103AWS Small Signal Schottky Diode Bruckewell
SD103AWS 0.35AMP Surface Mount Schottky Barrier Rectifiers Secos
SD103AWS SURFACE MOUNT SCHOTTKY BARRIER DIODE Kexin
SD103AWS Surface Mount Schottky Barrier Diodes Weitron
SD103AWS SCHOTTKY BARRIER SWITCHING DIODE UTC

Other Datasheets by PanJit Semiconductor

Part Number Description
SD103AW SURFACE MOUNT SCHOTTKY BARRIER DIODES
SD1030CS DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SD1030CT SCHOTTKY BARRIER RECTIFIER
SD1030YT SCHOTTKY BARRIER RECTIFIER
SD103BW SURFACE MOUNT SCHOTTKY BARRIER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

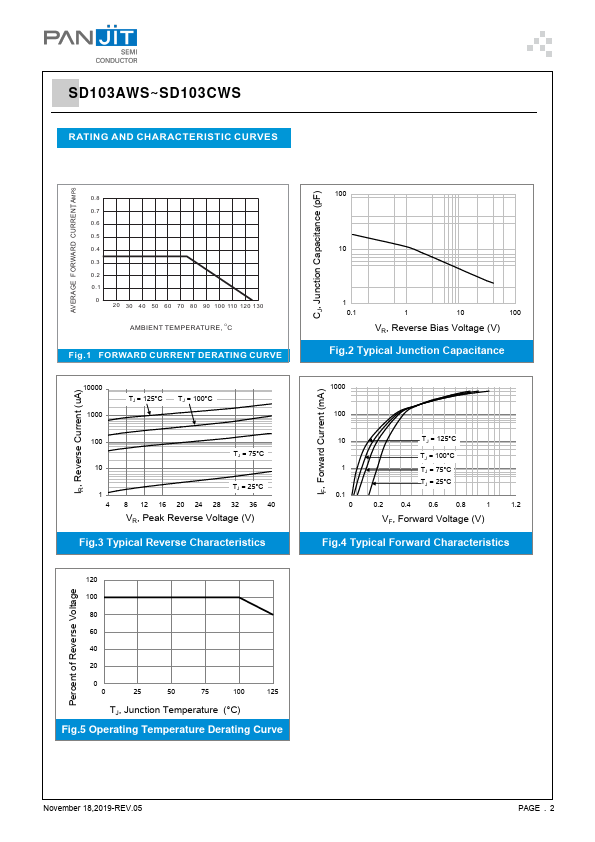

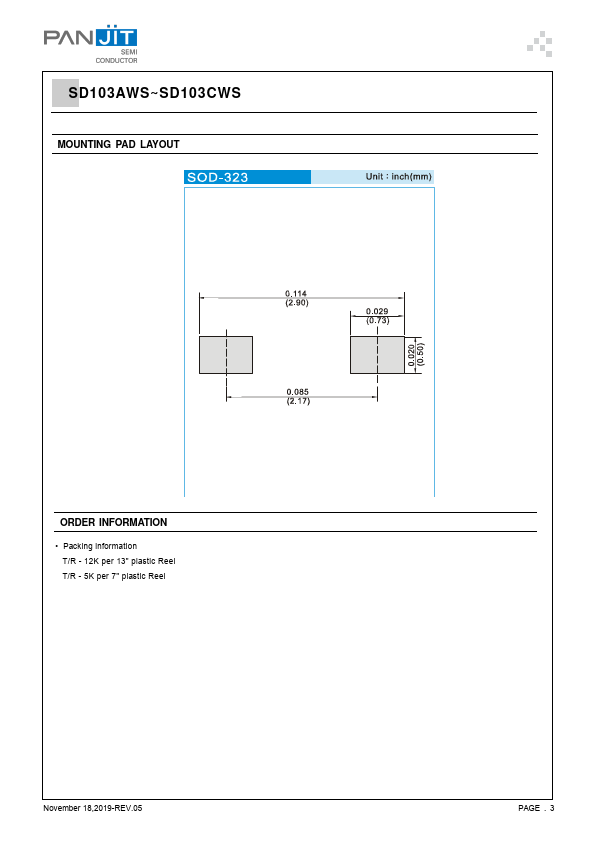

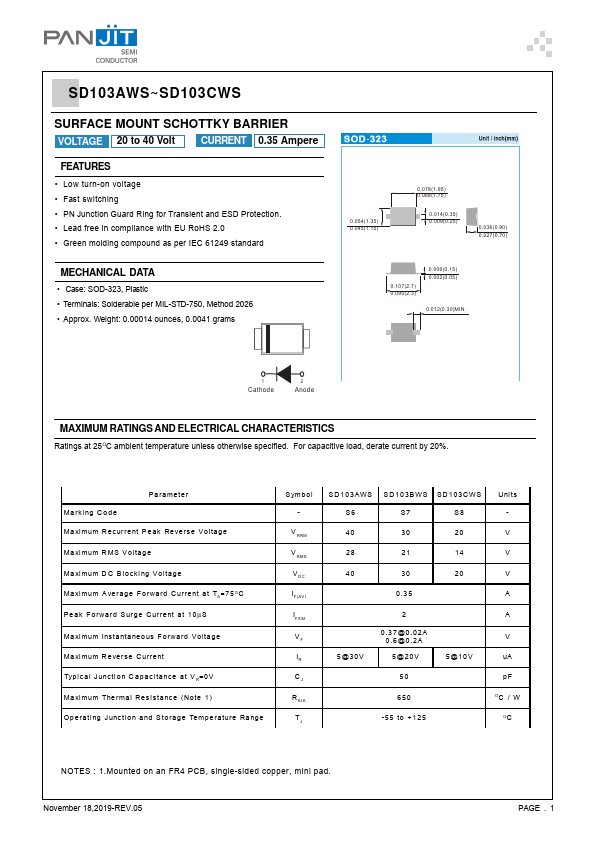

SD103AWS, SD103BWS, SD103CWS SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 20 - 40 Volts FEATURES • Low turn-on voltage • Fast switching • PN Junction Guard Ring for Transient and ESD Protection. CURRENT 0.35 Ampers PACKAGE SOD-323 MECHANICAL DATA Case: SOD-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking: S6, S7, S8 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Parameter Peak Repetitive Reverse Voltage Maximum Average Forward Current at Ta=25OC Peak Forward Surge Current, 8.
