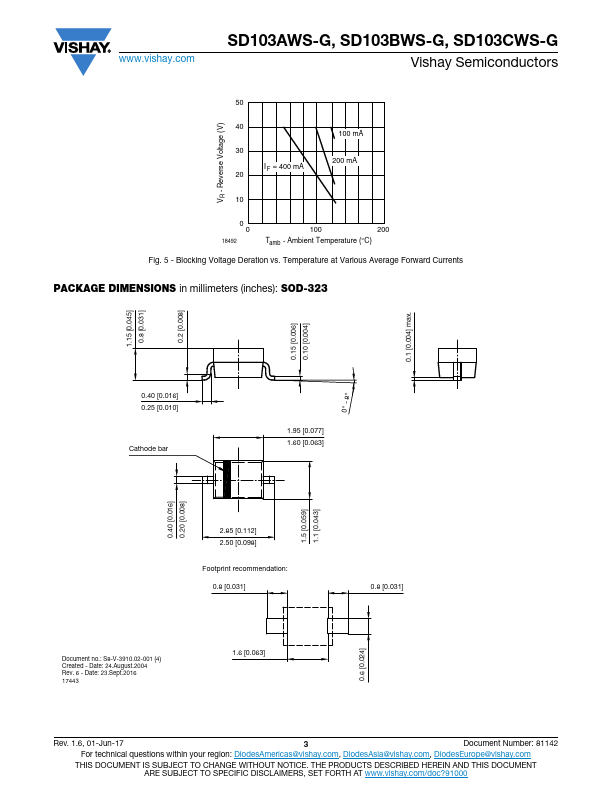

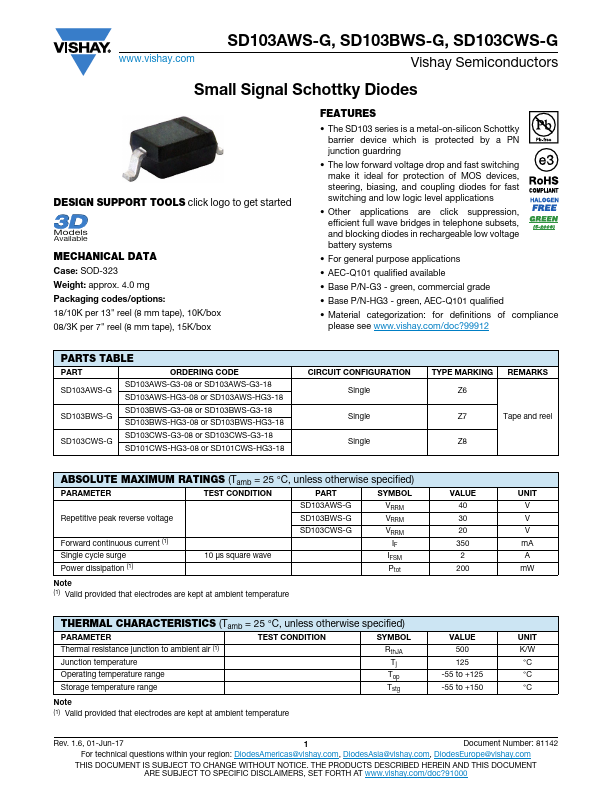

.vishay. SD103AWS-G, SD103BWS-G, SD103CWS-G Vishay Semiconductors Small Signal Schottky Diodes DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-323 Weight: approx. 4.0 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box Features - The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level applications - Other applications are click suppression, efficient full wave...
