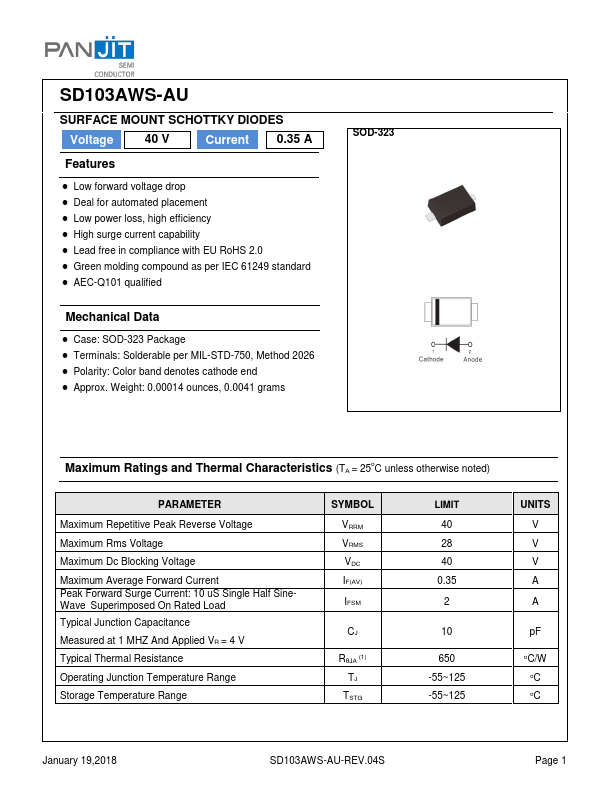

SD103AWS-AU Datasheet | PanJit Semiconductor

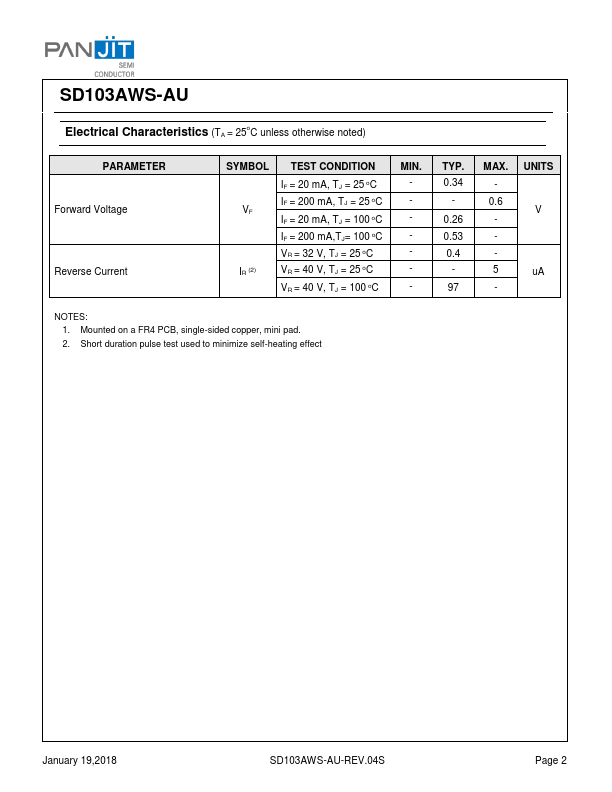

Features - Low forward voltage drop - Deal for automated placement - Low power loss, high efficiency - High surge current capability - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard - AEC-Q101 qualified Mechanical Data - Case: SOD-323 Package - Terminals: Solderable per MIL-STD-750, Method 2026 - Polarity: Color band denotes cathode end - Approx. Weight: 0.00014 ounces, 0.0041 grams SOD-323 Maximum Ratings and Thermal Characteristics (TA = 25o C unless otherwise noted) PARAMETER Maximum Repetitive Peak Reverse Voltage Maximum Rms Voltage Maximum Dc Blocking Voltage Maximum Average Forward Current Peak Forward Surge Current: 10 u S Single Half Sine Wave Superimposed On Rated Load Typical Junction Capacitance Measured at 1 MHZ And Applied VR = 4 V Typical Thermal Resistance Operating Junction Temperature Range Storage Temperature Range SYMBOL VRRM VRMS VDC IF(AV) IFSM RθJA (1) TJ TSTG LIMIT 40 28 40 0.35 2 650 -55~125 -55~125 UNITS V V V A A p F o C/W o C o C January 19,2018 SD103AWS-AU-REV.04S Page 1 Electrical Characteristics (TA = 25o C unless otherwise noted) PARAMETER Forward Voltage Reverse Current SYMBOL TEST CONDITION IF = 20 m A, TJ = 25 o C IF = 200 m A, TJ = 25 o C VF IF = 20 m A, TJ = 100 o C IF = 200 m A,TJ= 100 o C VR = 32 V, TJ = 25 o C IR (2) VR = 40 V, TJ = 25 o C VR = 40 V, TJ = 100 o...
