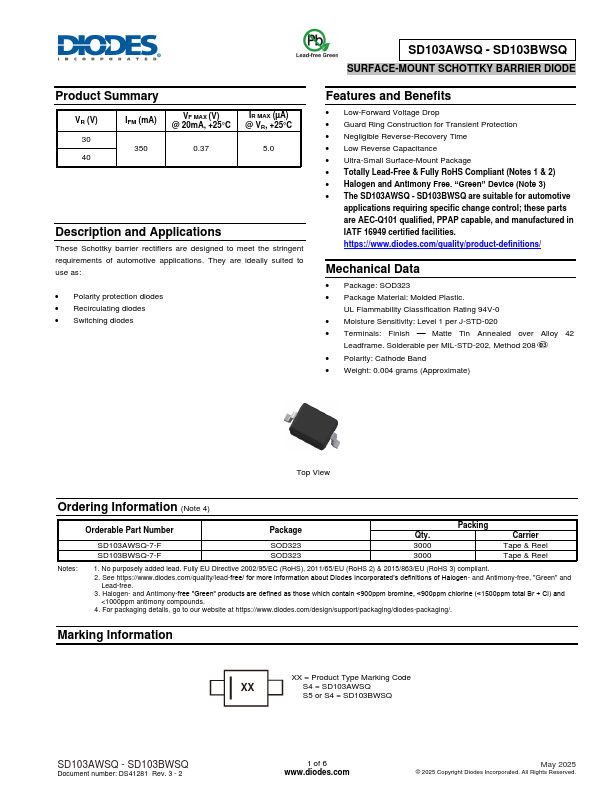

Datasheet Summary
Product Summary
VR (V) 30 40
IFM (mA)
VF MAX (V) @ 20mA, +25°C
IR MAX (µA) @ VR, +25°C
Description and Applications
These Schottky barrier rectifiers are designed to meet the stringent requirements of automotive applications. They are ideally suited to use as:
- Polarity protection diodes
- Recirculating diodes
- Switching diodes
SD103AWSQ
- SD103BWSQ
SURFACE-MOUNT SCHOTTKY BARRIER DIODE
Features and Benefits
- Low-Forward Voltage Drop
- Guard Ring Construction for Transient Protection
- Negligible Reverse-Recovery Time
- Low Reverse Capacitance
- Ultra-Small Surface-Mount Package
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free....
