DTQ218P015 - 15V P-Channel MOSFET

Din-Tek

Key Features

DT-Trench Power MOSFET.
15J DQG8,67HVWHG.
Low Gate Charge.
High Power and current handing capability.

DTQ218P015 15v p-channel mosfet by Din-Tek - Datasheet Preview

Datasheet Details

Part number	DTQ218P015
Manufacturer	Din-Tek
File Size	1.42 MB
Description	15V P-Channel MOSFET
Datasheet	DTQ218P015 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DTQ20P2	(DTQ-xxx) Service Manual	Daewoo
DTQ20V1	(DTQ-xxx) Service Manual	Daewoo
DTQ-13V6FCB	Color TV	Daewoo
DTQ-13V6FCP	Color TV	Daewoo
DTQ-14D7SS	Service Manual	DAEWOO

Other Datasheets by Din-Tek

Part Number	Description
DTQ2115	15V P-Channel MOSFET
DTQ2200	30V N-Channel MOSFET
DTQ2208	20V N-Channel MOSFET
DTQ2210	20V N-Channel MOSFET
DTQ2221	20V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

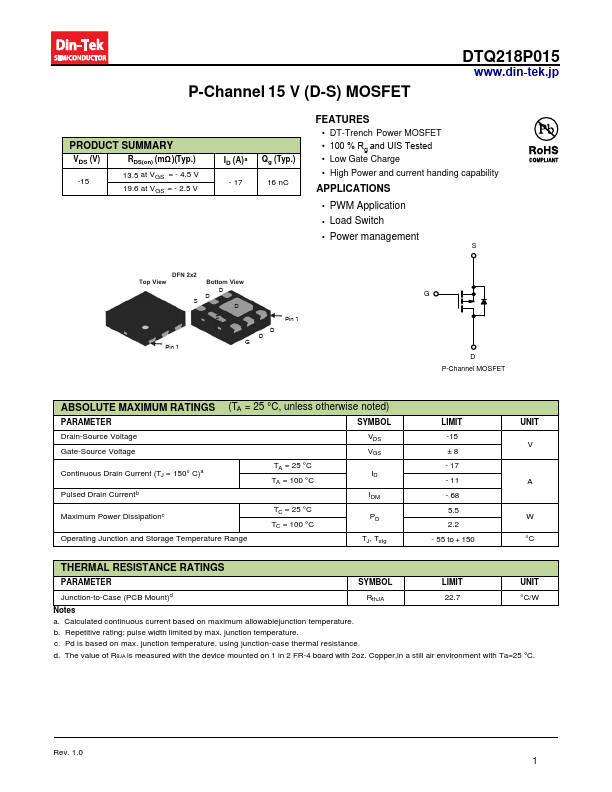

P-Channel 15 V (D-S) MOSFET DTQ218P015 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (mΩ )(Typ.) -15 13.5 at VGS = - 4.5 V 19.6 at VGS = - 2.5 V ID (A) a Qg (Typ.
