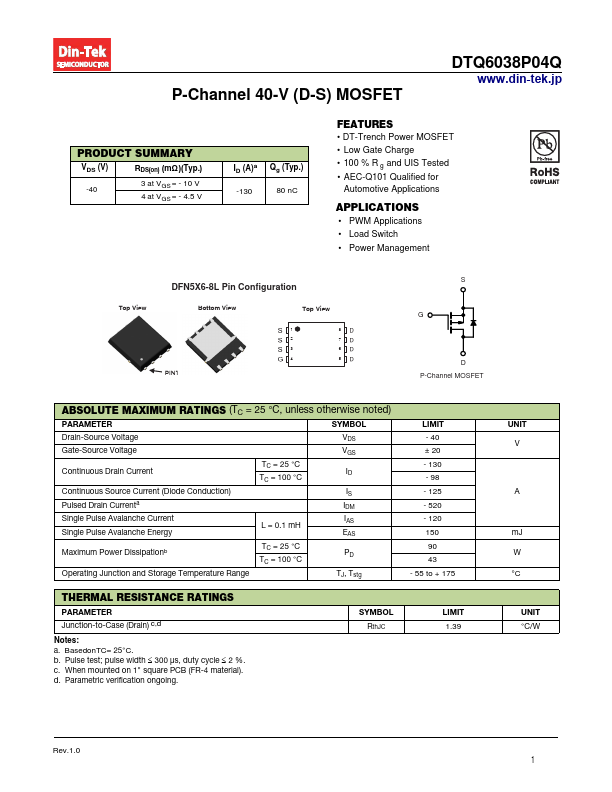

DTQ6038P04Q
DTQ6038P04Q is P-Channel 40V MOSFET manufactured by Din-Tek Semiconductor.
FEATURES
- DT-Trench Power MOSFET
- Low Gate Charge
- 100 % R g and UIS Tested
- AEC-Q101 Qualified for
Automotive Applications
APPLICATIONS
- PWM Applications
- Load Switch
- Power Management
Top View
DFN5X6-8L Pin Configuration
Bottom View
Top View
PIN1
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
TC = 25 °C TC = 100 °C
Continuous Source Current (Diode Conduction)
Pulsed Drain Currenta
Single Pulse Avalanche Current Single Pulse Avalanche Energy
L = 0.1 m H
Maximum Power Dissipationb
TC = 25 °C TC = 100 °C
Operating Junction and Storage Temperature Range
TJ,...
