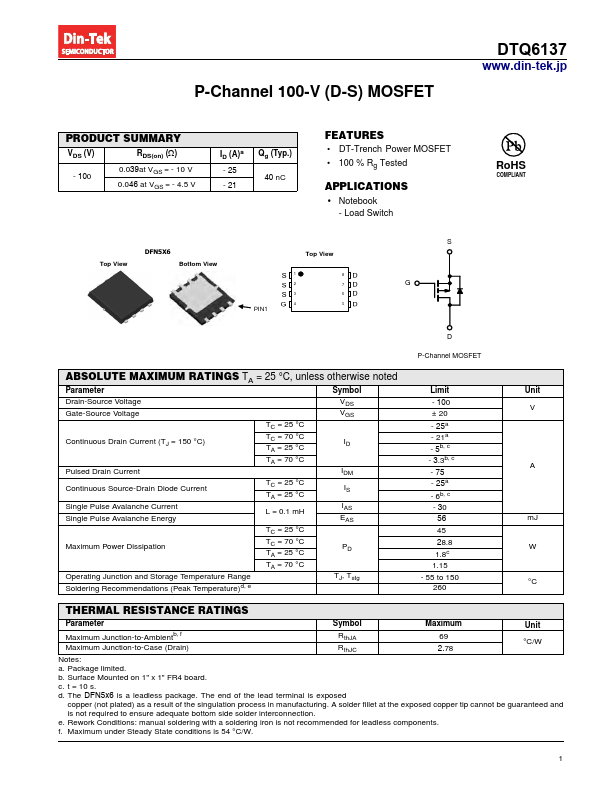

P-Channel 100-V (D-S) MOSFET
DTQ6137
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 100
0.039at VGS = - 10 V 0.046 at VGS = - 4.5 V
ID (A)a - 25 - 21
Qg (Typ.) 40 nC
FEATURES • DT-Trench Power MOSFET • 100 % Rg Tested
APPLICATIONS • Notebook
- Load Switch
RoHS
COMPLIANT
Top View
DFN5X6 Bottom View
PIN1
Top View
1
8
2
7
3
6
4
5
S G
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
VDS
- 100
V
VGS
± 20
TC = 25 °C
- 25a
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
ID
- 21a - 5b, c
Pulsed Drain Current
TA = 70 °C
- 3.
