BAW567DW - QUAD SURFACE MOUNT SWITCHING DIODE ARRAY

Key Features

  • Mechanical Data.
  • Fast Switching Speed.
  • Ultra-Small Surface Mount Package.
  • For General Purpose Switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAW567DW SMD Switching Diode Array Formosa MS
BAW567DW Surface Mount Switching Multi-Chip Diode Array WEITRON
BAW567DW Switching Diode JCET
BAW567DW Quad Surface Mount Switching Diode Array Kexin
BAW567DW Surface Mount Fast Switching Diodes GME

Other Datasheets by Diodes Incorporated

Part Number Description
BAW56 DUAL SURFACE MOUNT SWITCHING DIODE
BAW56DW QUAD SURFACE MOUNT SWITCHING DIODE ARRAY
BAW56W DUAL SURFACE MOUNT SWITCHING DIODE
BAW156T SURFACE MOUNT LOW LEAKAGE DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

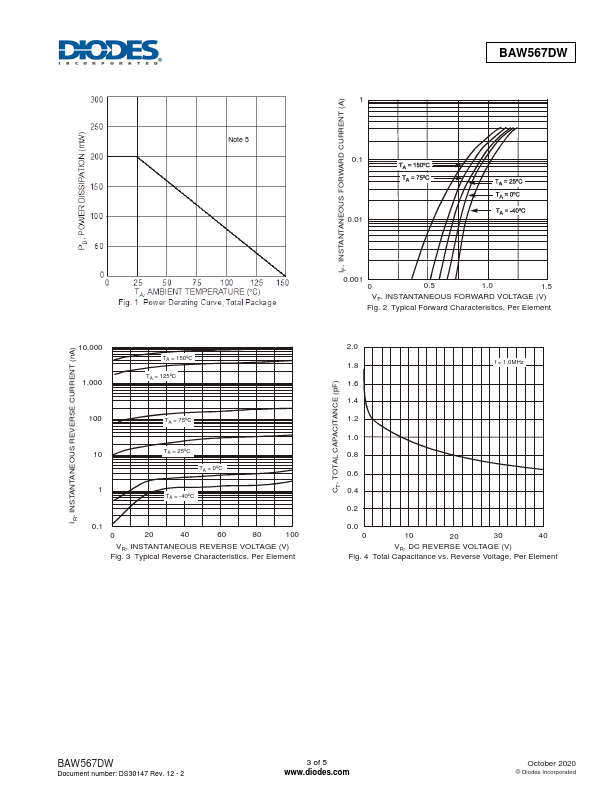

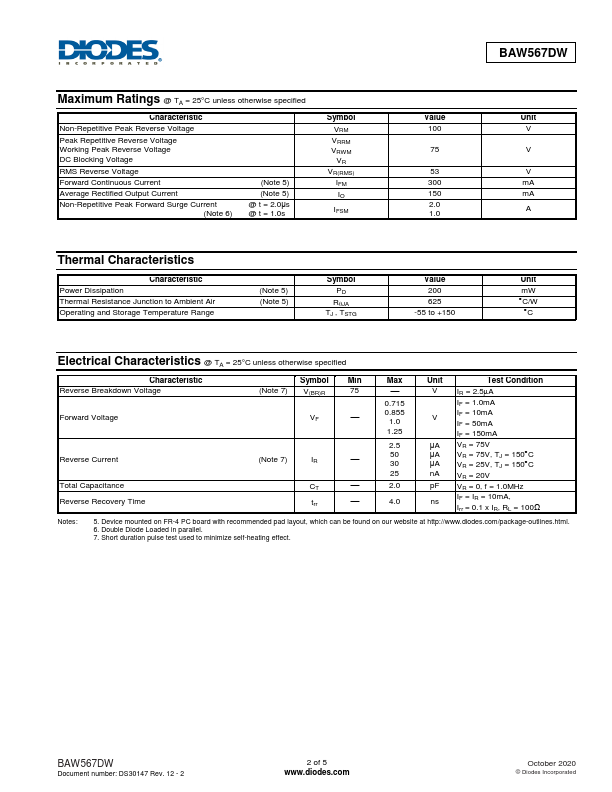

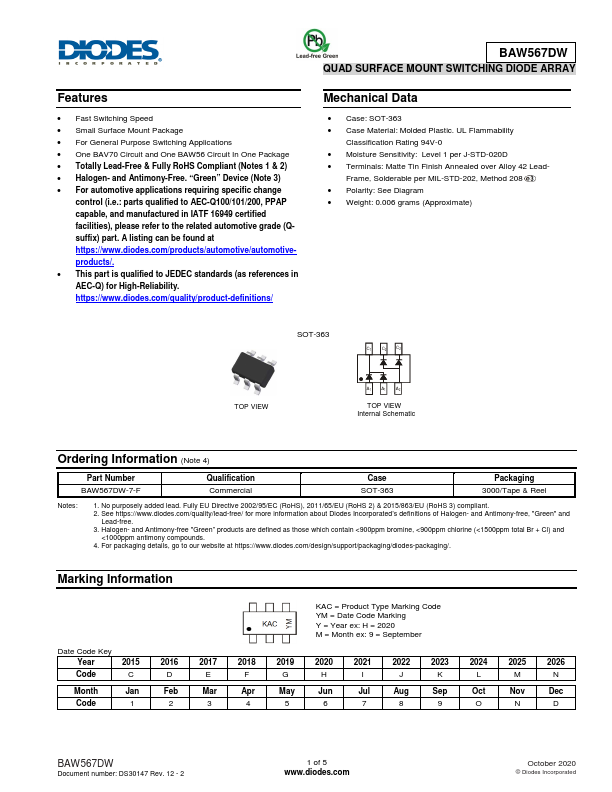

BAW567DW QUAD SURFACE MOUNT SWITCHING DIODE ARRAY Features Mechanical Data • Fast Switching Speed • Ultra-Small Surface Mount Package • For General Purpose Switching Applications • High Conductance • One BAV70 Circuit and One BAW56 Circuit In One Package • Lead Free/RoHS Compliant (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • "Green" Device (Notes 4 and 5) • Case: SOT-363 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020D • Terminals: Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). • Polarity: See Diagram • Marking Information: See Page 2 • Ordering Information: See Page 2 • Weight: 0.
