BC847PN - COMPLEMENTARY PAIR SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Key Features

  • Epitaxial Die Construction.
  • Two Internally Isolated NPN/PNP Transistors in One Package.
  • Ideal for Medium Power Amplification and Switching.
  • Ultra-Small Surface Mount Package.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. "Green" Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) Mechanical Data.
  • Case: SOT363.
  • Case Material: Molded Plastic, “Green” Molding Compound. U.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC847PN NPN/PNP Silicon AF Transistor Infineon Technologies AG
BC847PN Small Surface Mount Transistor GME
BC847PN DUAL TRANSISTOR JCET
BC847PN Complementary Surface Mount General Purpose Si-Planar Transistors Diotec
BC847PN NPN - PNP Silicon Multi-Chip Transistor SeCoS

Other Datasheets by Diodes Incorporated

Part Number Description
BC847AT NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
BC847BLD SMALL SIGNAL NPN TRANSISTOR
BC847BLP 45V NPN SMALL-SIGNAL TRANSISTOR
BC847BT NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
BC847BVN COMPLEMENTARY PAIR SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

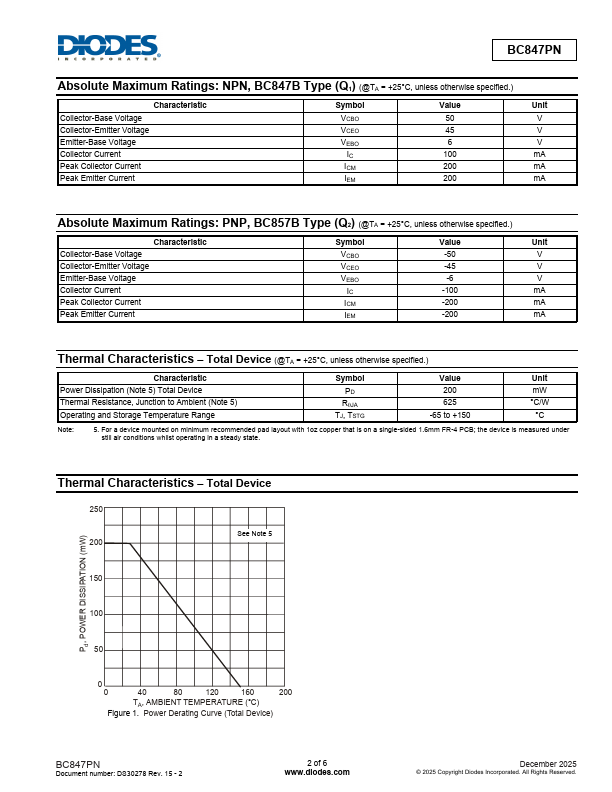

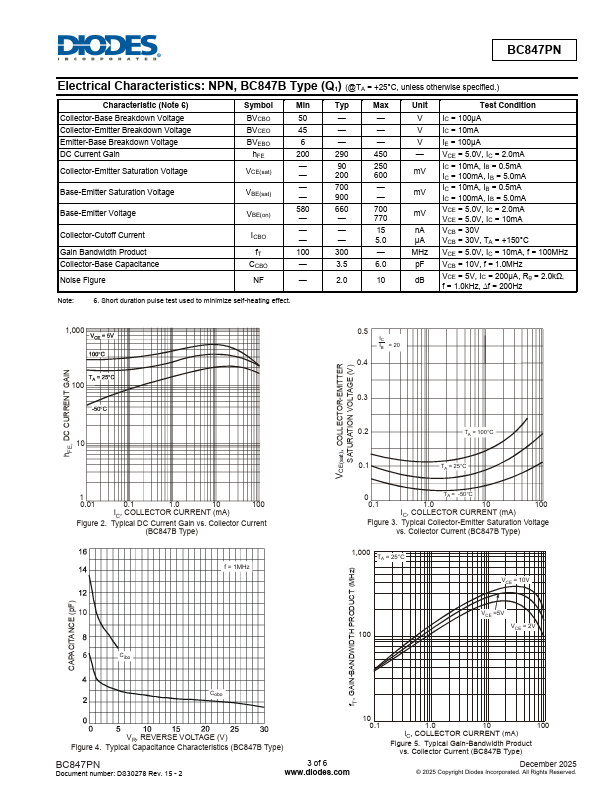

BC847PN COMPLEMENTARY PAIR SMALL SIGNAL TRANSISTOR IN SOT363 Features  Epitaxial Die Construction  Two Internally Isolated NPN/PNP Transistors in One Package  Ideal for Medium Power Amplification and Switching  Ultra-Small Surface Mount Package  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. "Green" Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability  PPAP Capable (Note 4) Mechanical Data  Case: SOT363  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  Matte Tin Finish. Solderable per MIL-STD-202, Method 208 e3  Weight: 0.
