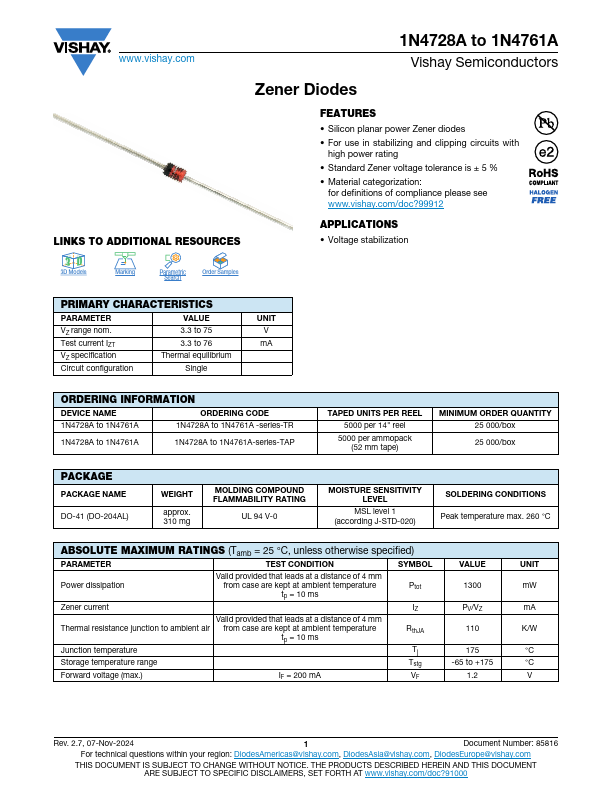

1N4733A Overview
Key Specifications
Package: DO-41-2
Mount Type: Through Hole
Pins: 2
Height: 2.72 mm

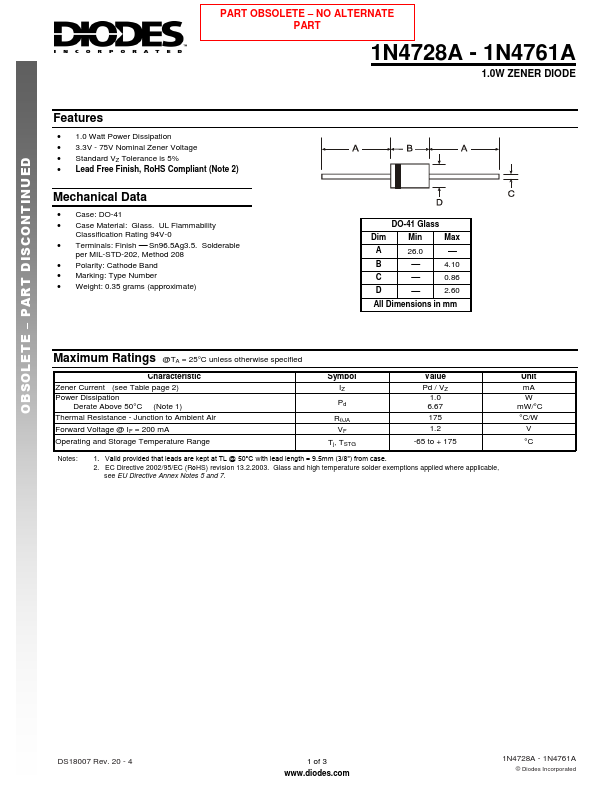

Key Features
- 1.0 Watt Power Dissipation
- 75V Nominal Zener Voltage
- Standard VZ Tolerance is 5%
- Lead Free Finish, RoHS Compliant (Note
- Mechanical Data
- Case Material: Glass. UL Flammability Classification Rating 94V-0
- Terminals: Finish Sn96.5Ag3.5. Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band
- Marking: Type Number

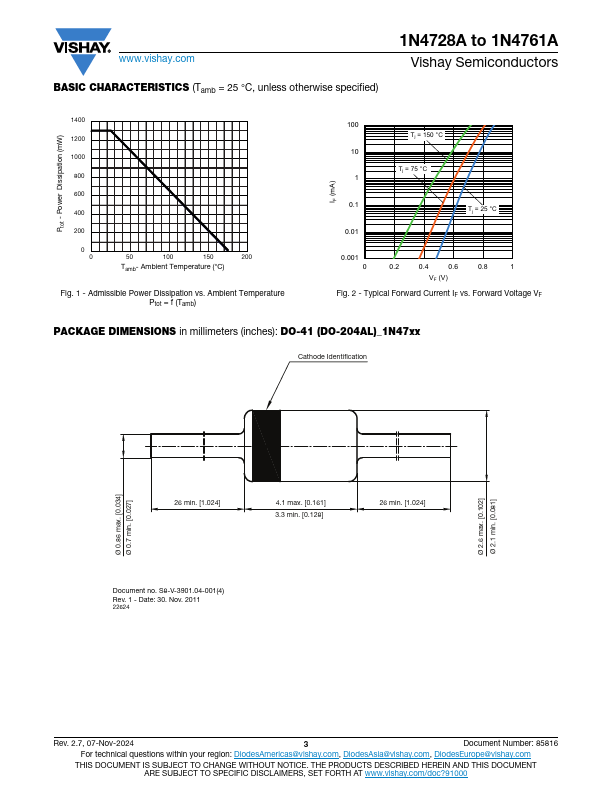

- Weight: 0.35 grams (approximate) DO-41 Glass Dim Min Max A 26.0 B 4.10 C 0.86 D 2.60 All Dimensions in mm
