1N4739A - 1.0W ZENER DIODE

This page provides the datasheet information for the 1N4739A, a member of the 1N4728A 1.0W ZENER DIODE family.

Product Overview

Diodes

Part number	1N4739A
Manufacturer	DIODES
File Size	88.76 KB
Description	1.0W ZENER DIODE
Datasheet	1N4739A Datasheet

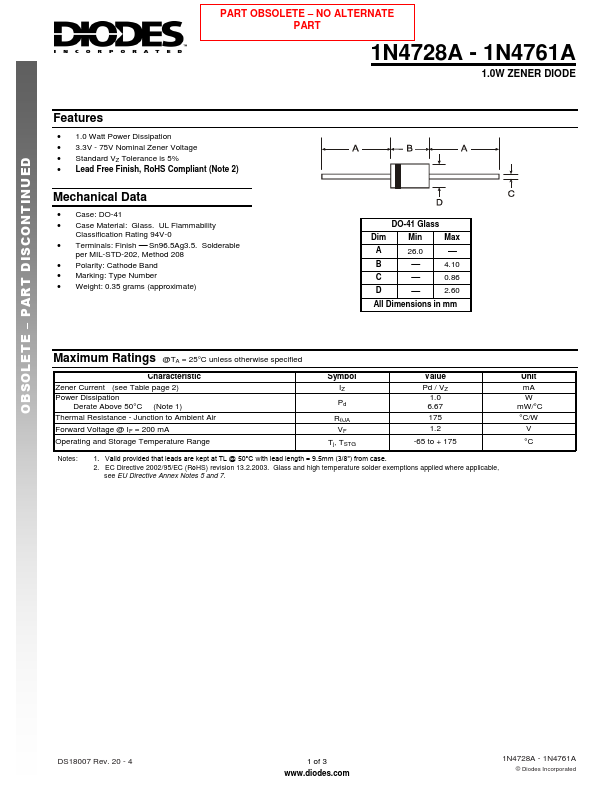

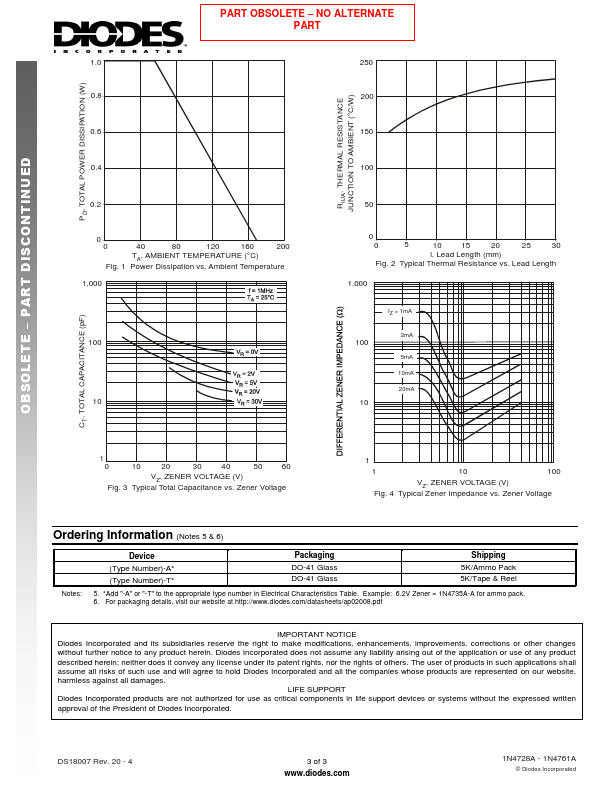

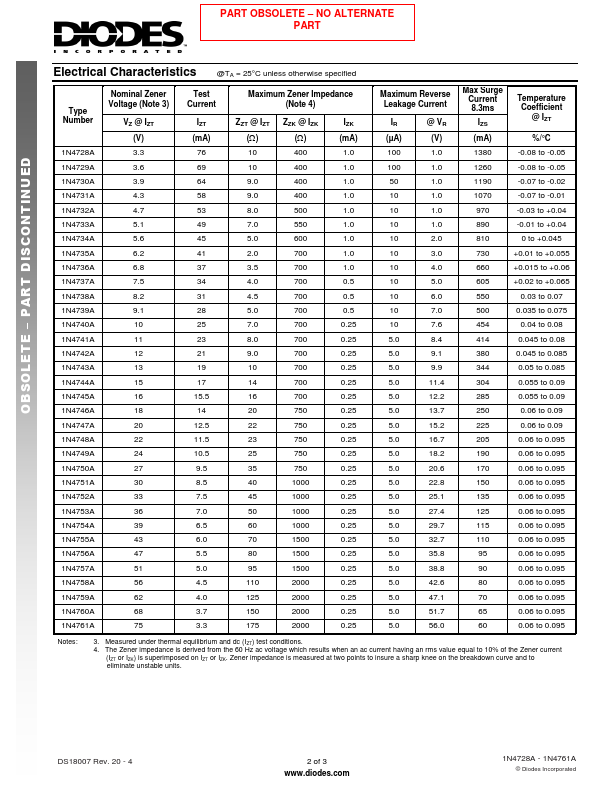

Additional preview pages of the 1N4739A datasheet.

Silicon planar power Zener diodes.
For use in stabilizing and clipping circuits with high power rating.
Standard Zener voltage tolerance is ± 5 %.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

1N4739A - Zener Diode (Formosa MS)
1N4739A - Zener Diodes (ON Semiconductor)
1N4739A - 1W Zener Diodes (TAITRON)
1N4739A - Zener Diodes (Vishay)
1N4739A - SILICON ZENER DIODES (Central Semiconductor)
1N4739A - Zener Diode (Multicomp)
1N4739A - Silicon Epitaxial Planar Zener Diodes (Hitachi)
1N4739A - TECHNICAL SPECIFICATIONS OF GLASS SILICON ZENER DIODES (Dc Components)
1N4739A - 1.0W Zener Diode (Comchip Technology)
1N4739A - SILICON PLANAR ZENER DIODES (Rectron)
