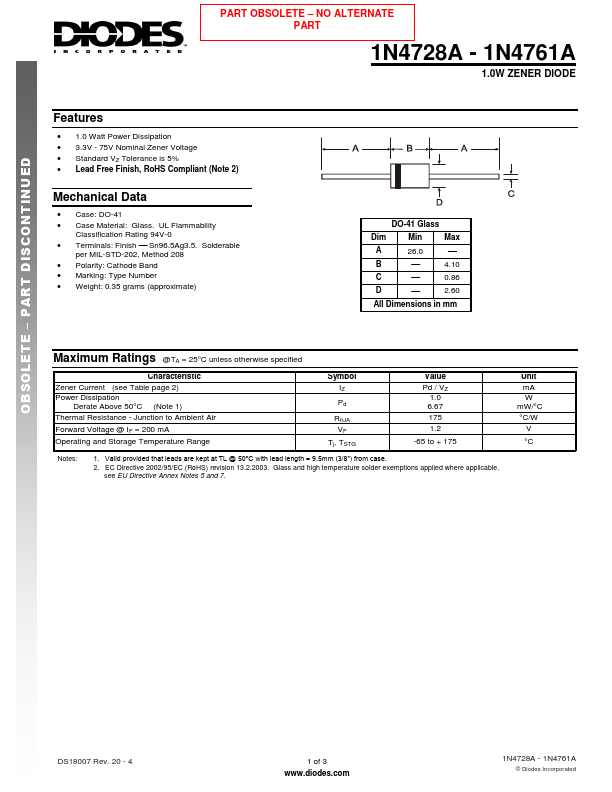

Datasheet Summary
OBSOLETE
- PART DISCONTINUED
PART OBSOLETE
- NO ALTERNATE PART
1N4728A
- 1N4761A
1.0W ZENER DIODE
Features
- 1.0 Watt Power Dissipation
- 3.3V
- 75V Nominal Zener Voltage
- Standard VZ Tolerance is 5%
- Lead Free Finish, RoHS pliant (Note 2)
Mechanical Data
- Case: DO-41
- Case Material: Glass. UL Flammability
Classification Rating 94V-0
- Terminals: Finish Sn96.5Ag3.5. Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.35 grams (approximate)
DO-41 Glass
Dim
Min
Max
All Dimensions in...
