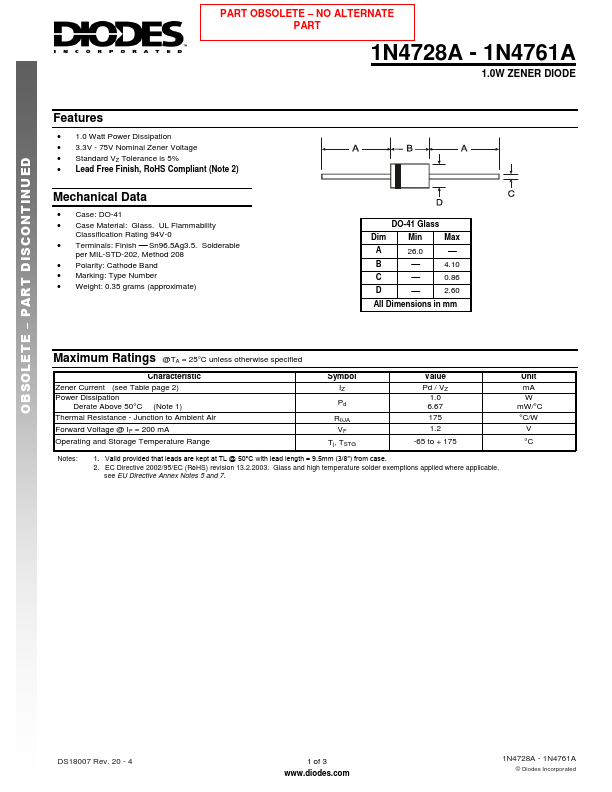

Key Features
- 1.0 Watt Power Dissipation
- 3.3V - 75V Nominal Zener Voltage
- Standard VZ Tolerance is 5%
- Lead Free Finish, RoHS Compliant (Note 2) Mechanical Data
- Case: DO-41
- Case Material: Glass. UL Flammability Classification Rating 94V-0
- Terminals: Finish Sn96.5Ag3.5. Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.35 grams (approximate) DO-41 Glass Dim Min Max A
