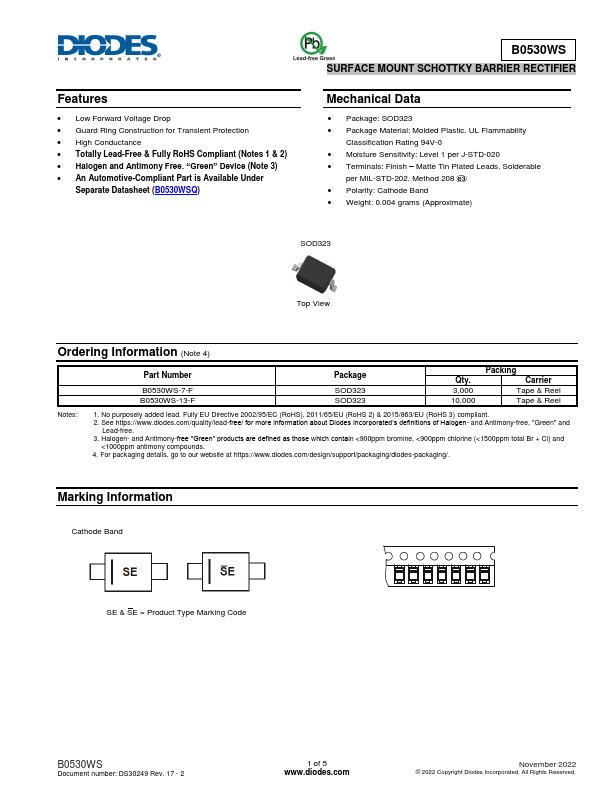

B0530WS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Key Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction for Transient Protection.
  • High Conductance.
  • Totally Lead-Free Finish & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP capable (Note 4) B0530WS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B0530WS Surface Mount Schottky Barrier Rectifier KINGWELL
B0530WS SCHOTTKY BARRIER DIODE Jin Yu Semiconductor
B0530WS Schottky Barrier Diode LGE
B0530WS SCHOTTKY BARRIER DIODE JCET
B0530WS SCHOTTKY DIODES AiT Components

Other Datasheets by Diodes Incorporated

Part Number Description
B0530WSQ SCHOTTKY BARRIER RECTIFIER
B0540W 0.5A SURFACE-MOUNT SCHOTTKY BARRIER RECTIFIER
B0540WQ 0.5A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
B0540WS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features • Low Forward Voltage Drop • Guard Ring Construction for Transient Protection • High Conductance • Totally Lead-Free Finish & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP capable (Note 4) B0530WS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Mechanical Data • Case: SOD323 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe). Solderable per MIL-STD-202, Method 208 e3 • Polarity: Cathode Band • Weight: 0.
