B140WS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Key Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction for Transient Protection.
  • High Conductance.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) B140WS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B140WS 1A Surface Mount Schottky Barrier Rectifiers CITC
B140WS-001 1 Amperes Surface Mount Schottky Barrier Rectifiers ETC
B140WS-F Small Signal Schottky Diode VIKING TECH
B140W 1 Amperes Surface Mount Schottky Barrier Rectifiers ETC
B140W Small Signal Schottky Diode VIKING TECH

Other Datasheets by Diodes Incorporated

Part Number Description
B140BQ 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
B140HW 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
B140HWQ SCHOTTKY BARRIER RECTIFIER
B140Q 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

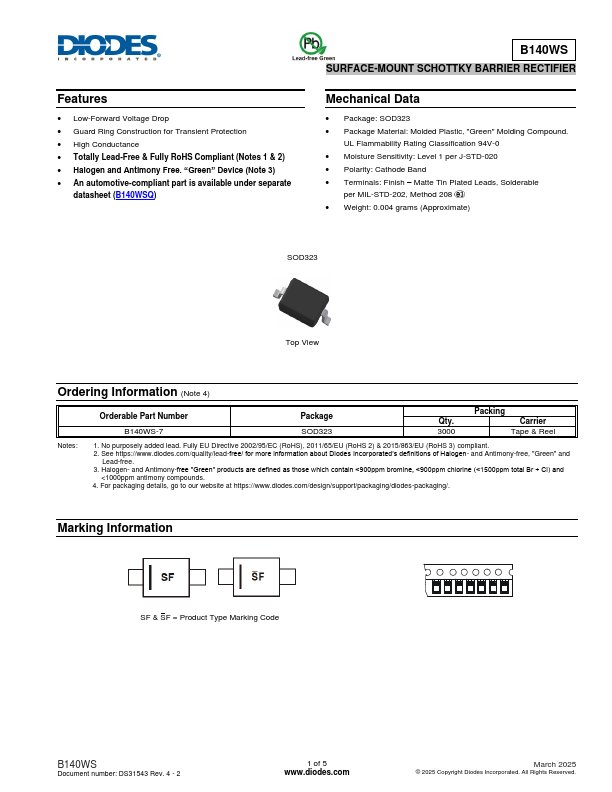

NEW PRODUCT Features • Low Forward Voltage Drop • Guard Ring Construction for Transient Protection • High Conductance • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) B140WS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Mechanical Data • Case: SOD323 • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Rating Classification 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Polarity: Cathode Band • Terminals: Finish - Matte Tin Annealed Over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.004 grams (approximate) SOD323 Top View Ordering Information (Note 4) Notes: Part Number B140WS-7 Case SOD323 Packaging 3000/Tape & Reel 1. No purposely added lead.
