BAT43W - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Diodes Incorporated

Download the BAT43W datasheet PDF. This datasheet also covers the BAT42W variant, as both devices belong to the same surface mount schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

Low-Forward Voltage Drop.
Fast Switching Time.
Surface-Mount Package Ideally Suited for Automated Insertion.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.

📥 Download Datasheet

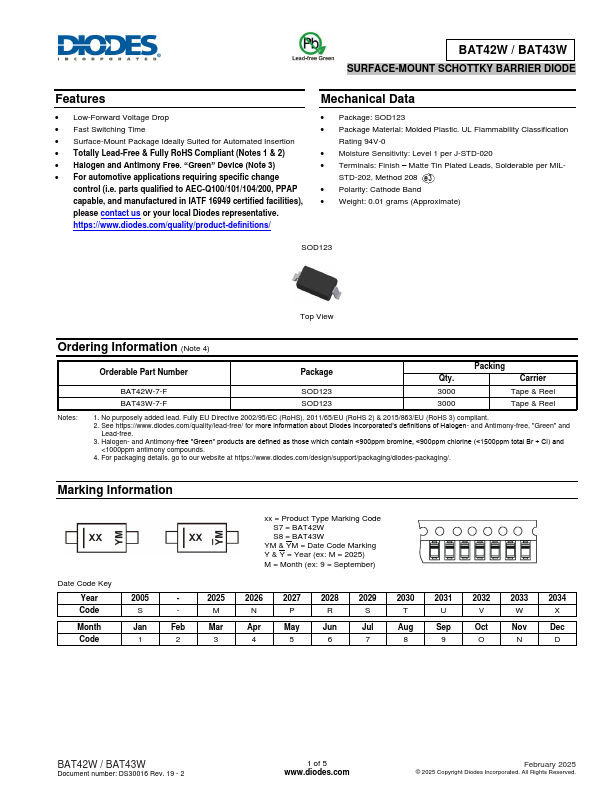

BAT43W surface mount schottky barrier diode by Diodes Incorporated - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BAT42W-Diodes.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BAT43W
Manufacturer	Diodes Incorporated
File Size	230.79 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	BAT43W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT43W	200mA Surface Mount Small Signal Diodes	CITC
BAT43W	Schottky Diodes	General Semiconductor
BAT43W	Surface Mount Schottky Barrier Diodes	JGD
BAT43W	SCHOTTKY DIODES	AiT Components
BAT43W	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER	KD

Other Datasheets by Diodes Incorporated

Part Number	Description
BAT400D	0.5A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
BAT42W	SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAT46	SCHOTTKY BARRIER DIODE
BAT46W	SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAT54	SURFACE-MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

BAT42W / BAT43W SURFACE-MOUNT SCHOTTKY BARRIER DIODE Features • Low-Forward Voltage Drop • Fast Switching Time • Surface-Mount Package Ideally Suited for Automated Insertion • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Mechanical Data • Package: SOD123 • Package Material: Molded Plastic.
