BAT43W - Small Signal Schottky Diode

Download the BAT43W datasheet PDF. This datasheet also covers the BAT42W variant, as both devices belong to the same small signal schottky diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
  • For general purpose.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAT42W-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BAT43W
Manufacturer Vishay
File Size 92.91 KB
Description Small Signal Schottky Diode
Datasheet download datasheet BAT43W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT43W 200mA Surface Mount Small Signal Diodes CITC
BAT43W Schottky Diodes General Semiconductor
BAT43W Surface Mount Schottky Barrier Diodes JGD
BAT43W SCHOTTKY DIODES AiT Components
BAT43W SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER KD

Other Datasheets by Vishay

Part Number Description
BAT43W-G Small Signal Schottky Diode
BAT43WS Small Signal Schottky Diode
BAT43WS-G Small Signal Schottky Diode
BAT43 Small Signal Schottky Diode
BAT42 Small Signal Schottky Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

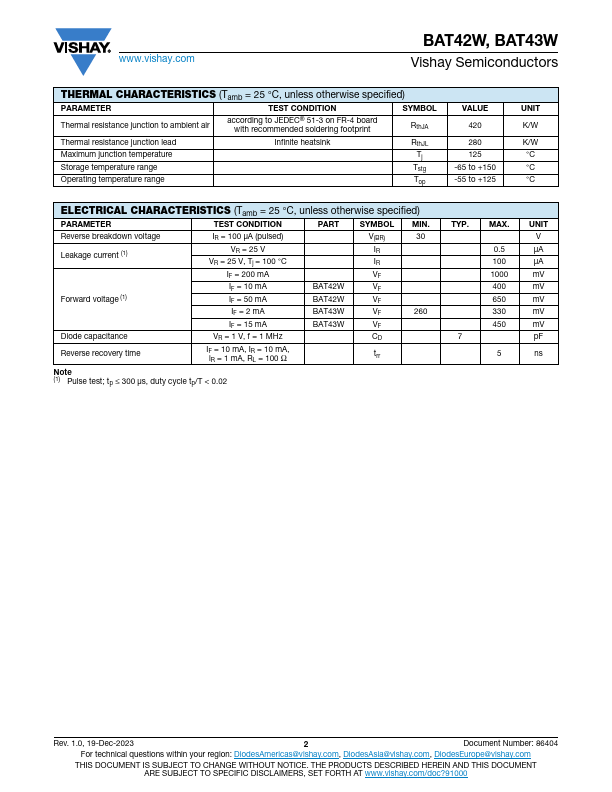

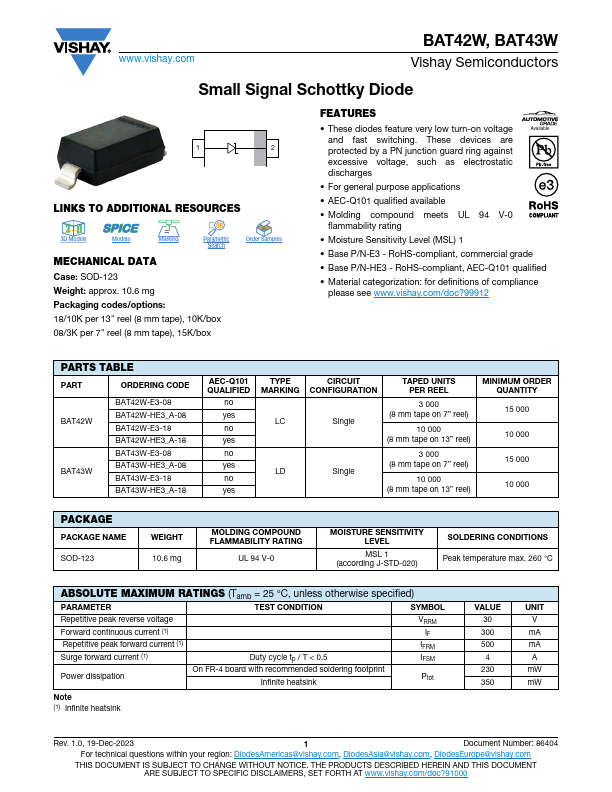

www.vishay.com BAT42W, BAT43W Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • For general purpose applications • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
