BAT43WS - Small Signal Schottky Diode

This page provides the datasheet information for the BAT43WS, a member of the BAT42WS Small Signal Schottky Diode family.

Product Overview

Vishay

📥 Download Datasheet

BAT43WS Small Signal Schottky Diode by Vishay - Datasheet Preview — Datasheet preview – BAT43WS

Datasheet Details

Part number	BAT43WS
Manufacturer	Vishay
File Size	81.07 KB
Description	Small Signal Schottky Diode
Datasheet	BAT43WS Datasheet

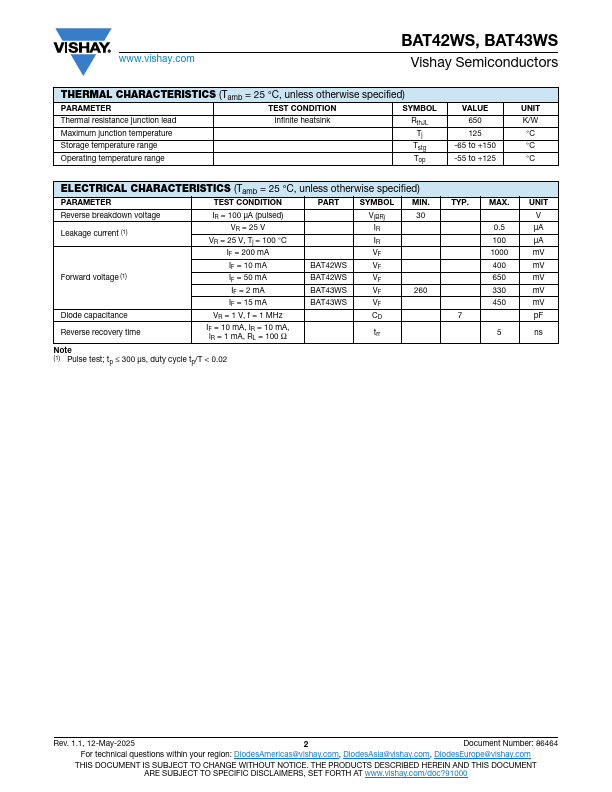

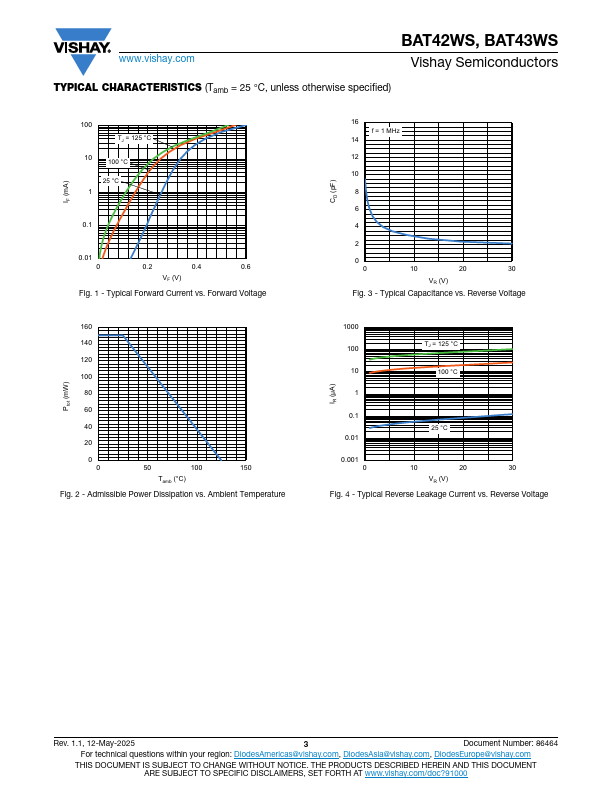

Additional preview pages of the BAT43WS datasheet.

BAT43WS Product details

Features

These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
For general purpose.
