BAT54Q - SCHOTTKY BARRIER RECTIFIER

Description

200mA surface-mount Schottky barrier diode in SOT23 package, offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient and ESD protection, totally lead-free finish and RoHS compliant, “Green” device.

Package: SOT23

Features

  • Low Turn-on Voltage.
  • Fast Switching.
  • PN Junction Guard Ring for Transient and ESD Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • The BAT54Q /AQ /CQ /SQ is suitable for automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT54 Multiple Terminals SMD Schottky Diodes TAITRON
BAT54 SMD Small Signal Schottky Diodes Diotec
BAT54 Small signal Schottky diodes STMicroelectronics
BAT54 Schottky barrier diodes nexperia
BAT54 Schottky barrier diodes NXP

Other Datasheets by Diodes Incorporated

Part Number Description
BAT54 SURFACE-MOUNT SCHOTTKY BARRIER DIODE
BAT54A SURFACE-MOUNT SCHOTTKY BARRIER DIODE
BAT54ADW SURFACE-MOUNT SCHOTTKY BARRIER DIODE ARRAYS
BAT54AQ SCHOTTKY BARRIER RECTIFIER
BAT54AT SURFACE-MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text

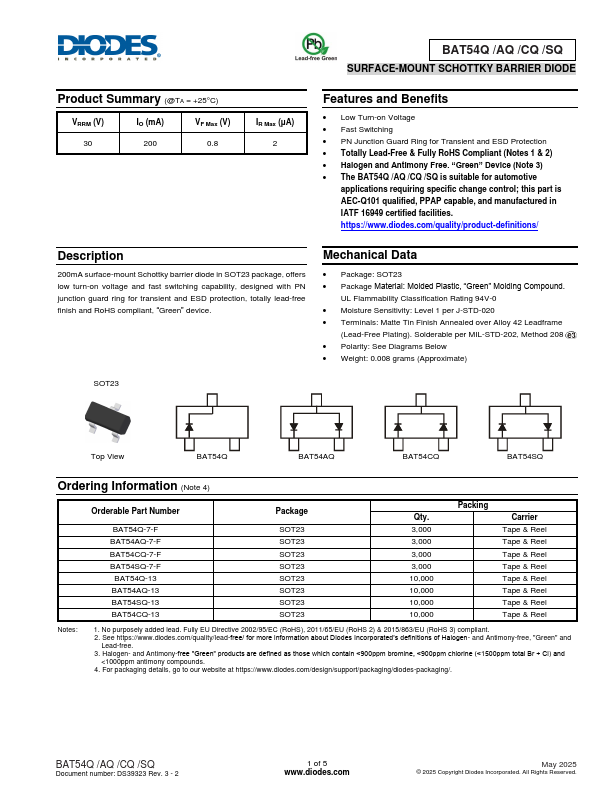

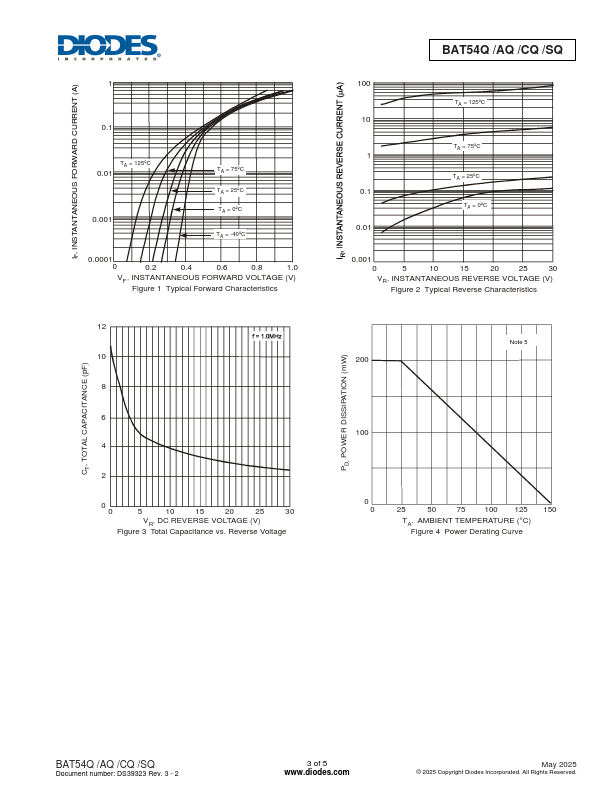

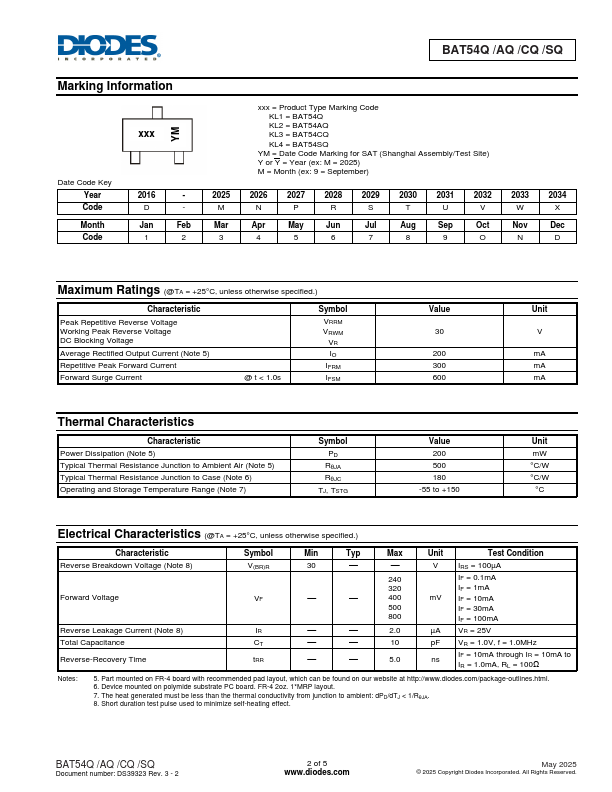

BAT54Q /AQ /CQ /SQ SURFACE-MOUNT SCHOTTKY BARRIER DIODE Product Summary (@TA = +25°C) VRRM (V) 30 IO (mA) 200 VF Max (V) 0.8 IR Max (μA) 2 Features and Benefits • Low Turn-on Voltage • Fast Switching • PN Junction Guard Ring for Transient and ESD Protection • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • The BAT54Q /AQ /CQ /SQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
