BAT54SQ - SCHOTTKY BARRIER RECTIFIER

Download the BAT54SQ datasheet PDF. This datasheet also covers the BAT54Q variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

General Description

200mA surface-mount Schottky barrier diode in SOT23 package, offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient and ESD protection, totally lead-free finish and RoHS compliant, “Green” device.

Package: SOT23

Key Features

  • Low Turn-on Voltage.
  • Fast Switching.
  • PN Junction Guard Ring for Transient and ESD Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • The BAT54Q /AQ /CQ /SQ is suitable for automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAT54Q-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAT54S Schottky Diodes Fairchild Semiconductor
BAT54S SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP
BAT54S Schottky barrier diodes nexperia
BAT54S SCHOTTKY DIODE Rectron Semiconductor
BAT54S Schottky Diodes General Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
BAT54S SURFACE-MOUNT SCHOTTKY BARRIER DIODE
BAT54SDW SURFACE-MOUNT SCHOTTKY BARRIER DIODE ARRAYS
BAT54SDWQ SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
BAT54ST SURFACE-MOUNT SCHOTTKY BARRIER DIODE
BAT54STWQ SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

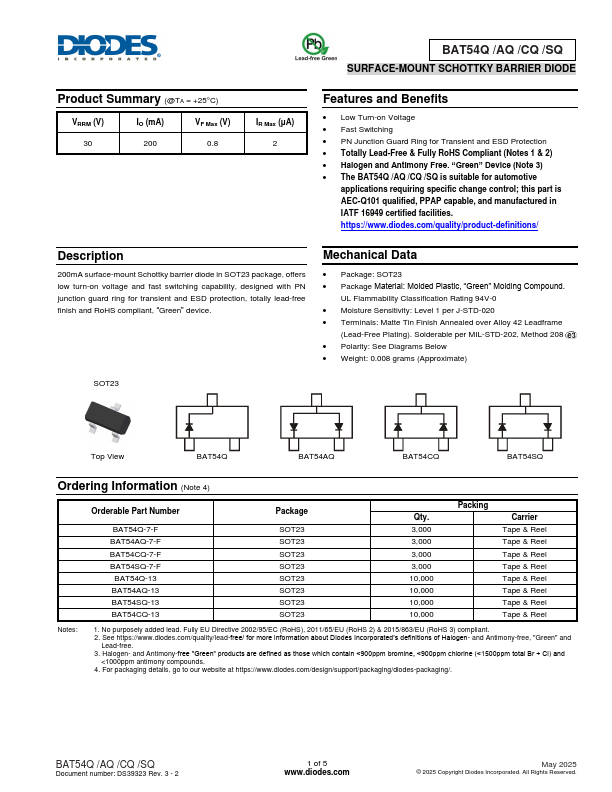

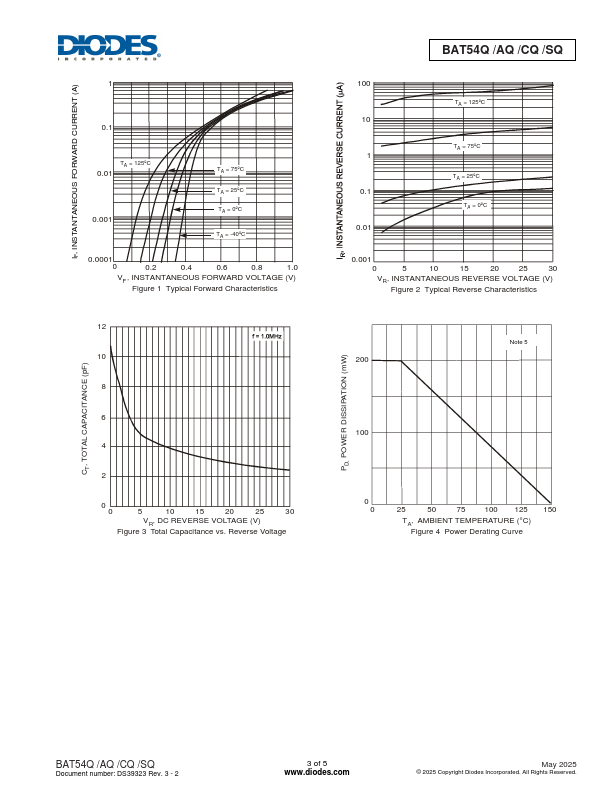

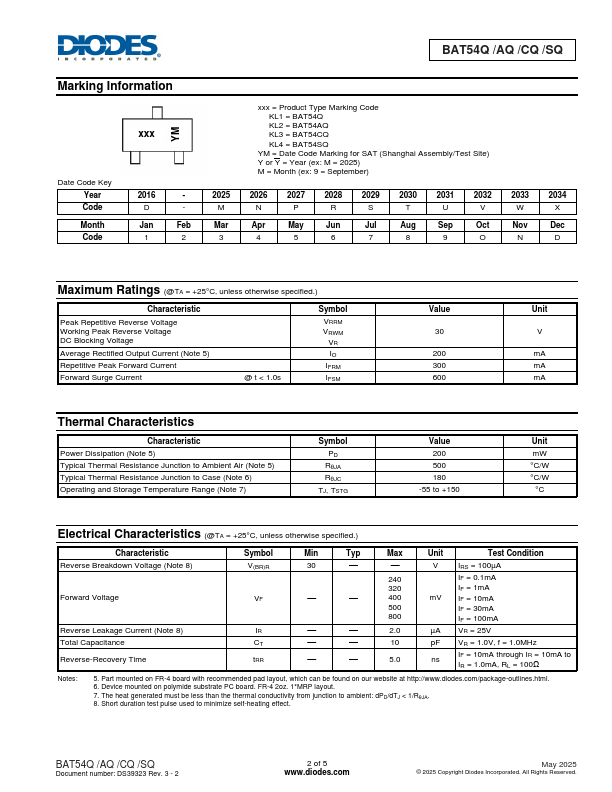

BAT54Q /AQ /CQ /SQ SURFACE-MOUNT SCHOTTKY BARRIER DIODE Product Summary (@TA = +25°C) VRRM (V) 30 IO (mA) 200 VF Max (V) 0.8 IR Max (μA) 2 Features and Benefits • Low Turn-on Voltage • Fast Switching • PN Junction Guard Ring for Transient and ESD Protection • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • The BAT54Q /AQ /CQ /SQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
