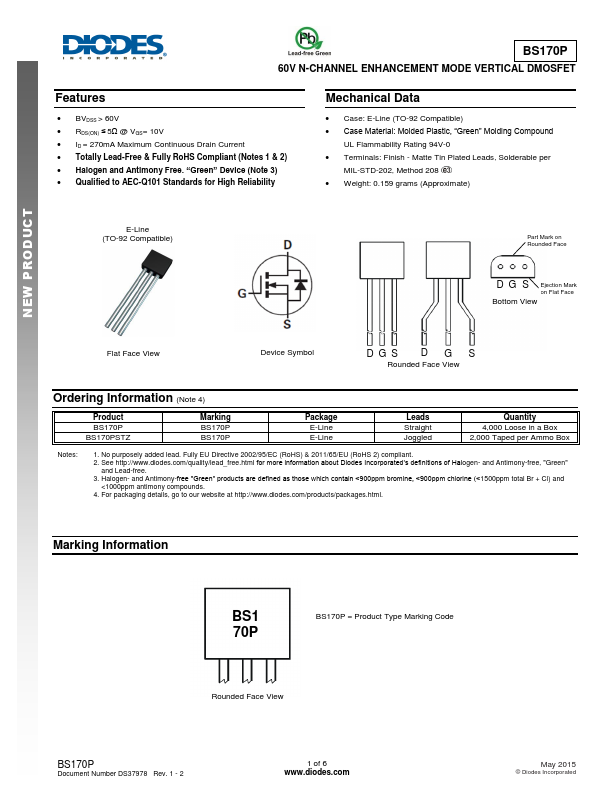

Diodes Incorporated BS170P
60V N-CHANNEL ENHANCEMENT MODE VERTICAL DMOSFET
| Part No. | BS170P |
|---|---|
| Datasheet | BS170P Download |
| Manufacturer |  Diodes Incorporated |
| Description | 60V N-CHANNEL ENHANCEMENT MODE VERTICAL DMOSFET |
| Buy | Stock & Price |
FEATURES
● BVDSS > 60V● RDS(ON) ≤ 5Ω @ VGS= 10V
● ID = 270mA Maximum Continuous Drain Current
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● Qualified to AEC-Q101 Standards for High Reliability
MECHANICAL DATA
● Case: E-Line (TO-92 Compatible)● Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Rating 94V-0
● Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight: 0.159 grams (Approximate) E-Line (TO-92 Compatible) Part Mark on Rounded Face D G S Ejection Mark on Flat Face Bottom View Flat Face View Device Symbol DGS Pin-Out Configuration DGS Rounded Face View Ordering Information (Note 4) Product BS170P BS170PSTZ Marking BS170P BS170P Package E-Line E-Line Leads Straight Joggled Quantity 4,000 Loose in a Box 2,000 Taped per Ammo Box Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
