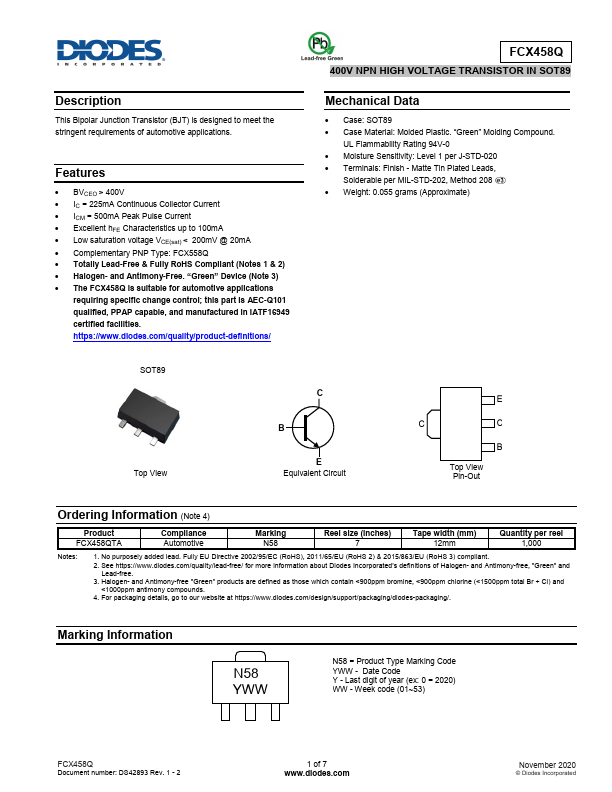

Diodes Incorporated FCX458Q
The FCX458Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities.| Part No. | FCX458Q |
|---|---|
| Datasheet | FCX458Q Download |
| Manufacturer |  Diodes Incorporated |
| Description | 400V NPN HIGH VOLTAGE TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of automotive applications.FEATURES
● BVCEO > 400V● IC = 225mA Continuous Collector Current
● ICM = 500mA Peak Pulse Current
● Excellent hFE Characteristics up to 100mA
● Low saturation voltage VCE(sat) < 200mV @ 20mA
● Complementary PNP Type: FCX558Q
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen- and Antimony-Free. “Green” Device (Note 3)
● FCX458Q 400V NPN HIGH VOLTAGE TRANSISTOR IN SOT89
MECHANICAL DATA
● Case: SOT89● Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight: 0.055 grams (Approximate) SOT89 Top View C B E Equivalent Circuit E C C B Top View Pin-Out Ordering Information (Note 4) Product FCX458QTA Compliance Automotive Marking N58 Reel size (inches) 7 Tape width (mm) 12mm Quantity per reel 1,000 Notes: 1.
