FCX458 - NPN HIGH VOLTAGE TRANSISTOR

Key Features

  • BVCEO > 400V.
  • IC = 225mA Continuous Collector Current.
  • ICM = 500mA Peak Pulse Current.
  • Excellent hFE Characteristics up to 100mA.
  • Low saturation voltage VCE(sat) < 200mV @ 20mA.
  • Complementary PNP Type: FCX558.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes Incorporated FCX458 400V NPN HIGH.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FCX458 NPN Silicon Planar High Voltage Transistor Kexin
FCX1051A NPN SILICON POWER TRANSISTOR Zetex Semiconductors
FCX1147A PNP SILICON POWER (SWITCHING) TRANSISTOR Zetex Semiconductors
FCX1147A PNP Silicon Power Switching Transistor Kexin
FCX1149A PNP SILICON POWER (SWITCHING) TRANSISTOR Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
FCX491 NPN MEDIUM POWER TRANSISTOR
FCX491A NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FCX493 100V NPN MEDIUM POWER TRANSISTOR
FCX493A NPN MEDIUM POWER HIGH GAIN TRANSISTOR
FCX493Q 100V NPN POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

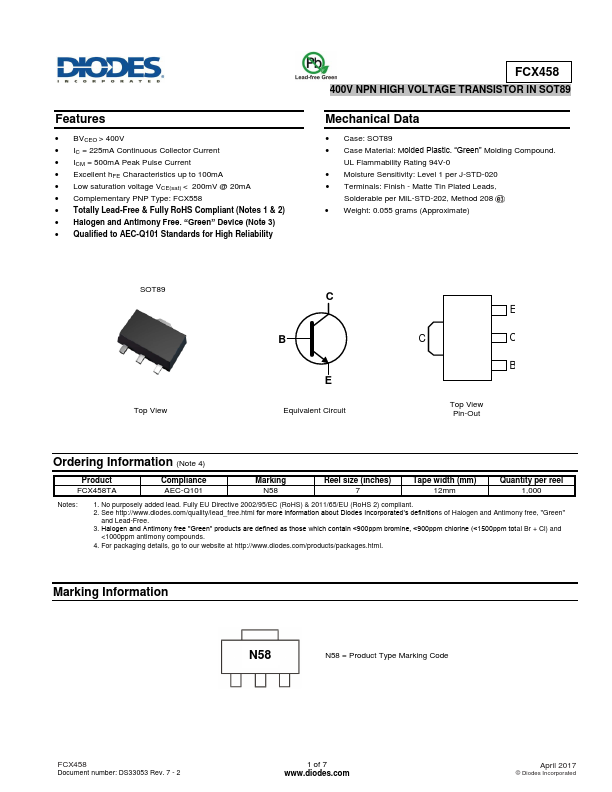

Features  BVCEO > 400V  IC = 225mA Continuous Collector Current  ICM = 500mA Peak Pulse Current  Excellent hFE Characteristics up to 100mA  Low saturation voltage VCE(sat) < 200mV @ 20mA  Complementary PNP Type: FCX558  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes Incorporated FCX458 400V NPN HIGH VOLTAGE TRANSISTOR IN SOT89 Mechanical Data  Case: SOT89  Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208  Weight: 0.
