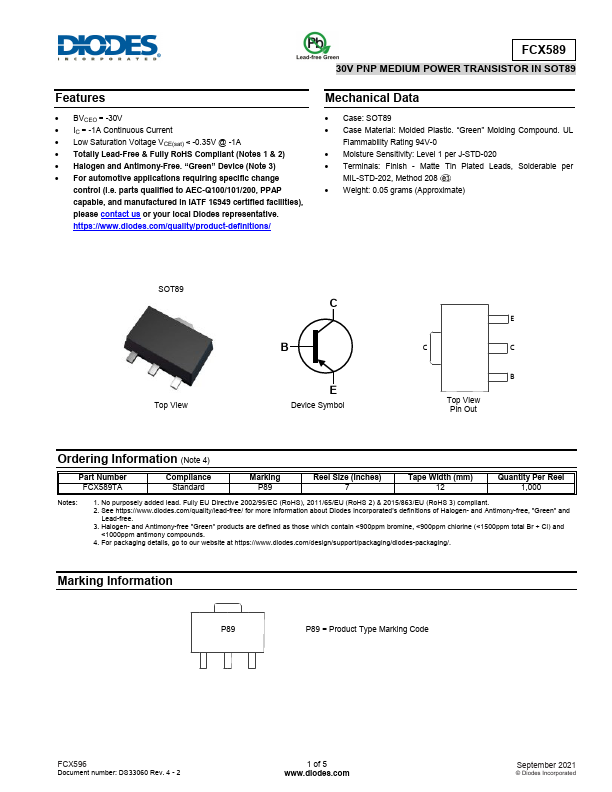

Diodes Incorporated FCX589
30V PNP MEDIUM POWER TRANSISTOR
| Part No. | FCX589 |
|---|---|
| Datasheet | FCX589 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 30V PNP MEDIUM POWER TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● BVCEO = -30V● IC = -1A Continuous Current
● Low Saturation Voltage VCE(sat) < -0.35V @ -1A
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony-Free. “Green” Device (Note 3)
● For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.
MECHANICAL DATA
● Case: SOT89● Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight: 0.05 grams (Approximate) SOT89 Top View C B E Device Symbol E C C B Top View Pin Out Ordering Information (Note 4) Part Number FCX589TA Compliance Standard Marking P89 Reel Size (inches) 7 Tape Width (mm) 12 Quantity Per Reel 1,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
