FMMT625 - NPN SILICON LOW SATURATION TRANSISTOR

Key Features

  • BVCEO > 150V.
  • Maximum Continuous Collector Current IC = 1A.
  • 625mW Power dissipation.
  • hFE characterised up to 3.0A.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP capable (Note 4) Mechanical Data.
  • Case: SOT23.
  • Case Material: molded plastic, “Green” molding compound.
  • UL Flammabili.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMMT625 NPN SILICON POWER (SWITCHING) TRANSISTORS Zetex Semiconductors
FMMT620 SuperSOT 80V NPN SILICON LOW SATURATION TRANSISTOR Zetex Semiconductors
FMMT620TA SuperSOT 80V NPN SILICON LOW SATURATION TRANSISTOR Zetex Semiconductors
FMMT620TC SuperSOT 80V NPN SILICON LOW SATURATION TRANSISTOR Zetex Semiconductors
FMMT624 NPN SILICON POWER (SWITCHING) TRANSISTORS Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
FMMT620 NPN SILICON LOW SATURATION TRANSISTOR
FMMT619 NPN SILICON LOW SATURATION TRANSISTOR
FMMT619Q 50V NPN TRANSISTOR
FMMT634 NPN DARLINGTON TRANSISTOR
FMMT634Q NPN DARLINGTON TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

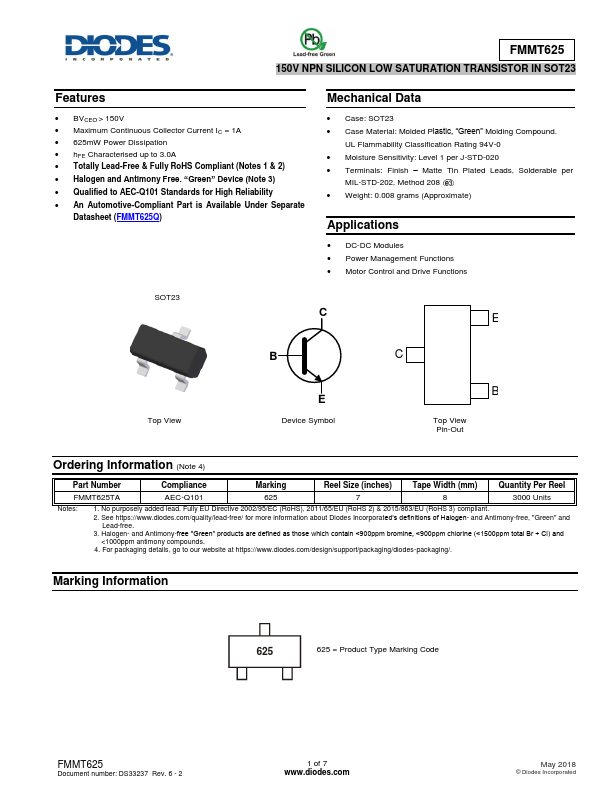

A Product Line of Diodes Incorporated FMMT625 150V NPN SILICON LOW SATURATION TRANSISTOR IN SOT23 Features • BVCEO > 150V • Maximum Continuous Collector Current IC = 1A • 625mW Power dissipation • hFE characterised up to 3.0A • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP capable (Note 4) Mechanical Data • Case: SOT23 • Case Material: molded plastic, “Green” molding compound • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight 0.
