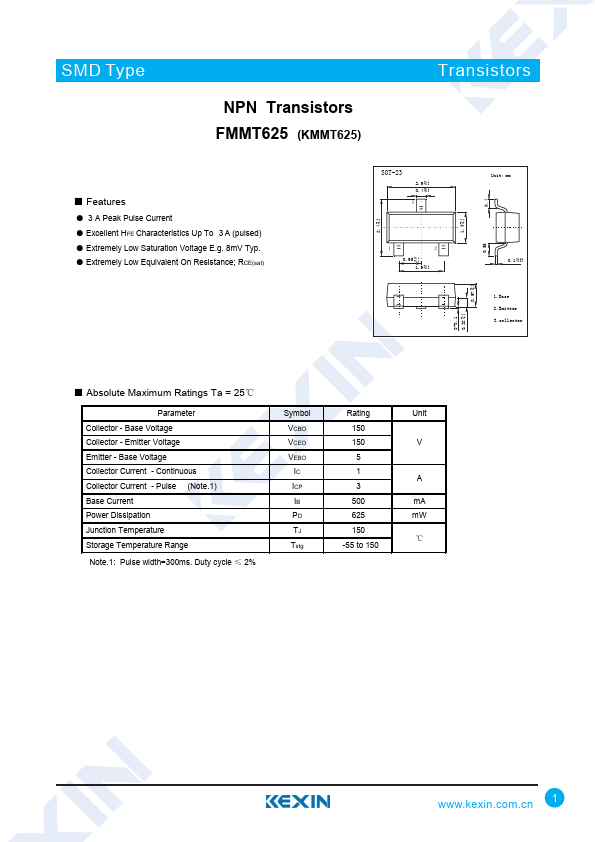

FMMT625
Features
- 3 A Peak Pulse Current
- Excellent HFE Characteristics Up To 3 A (pulsed)
- Extremely Low Saturation Voltage E.g. 8m V Typ.
- Extremely Low Equivalent On Resistance; RCE(sat)
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1 +0.05 -0.01
1.Base 2.Emitter 3.collector
0-0.1 +0.1 0.38
-0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse (Note.1) Base Current Power Dissipation Junction Temperature Storage Temperature Range
Symbol
Rating
Unit
VCBO
VCEO
VEBO
500 m...
