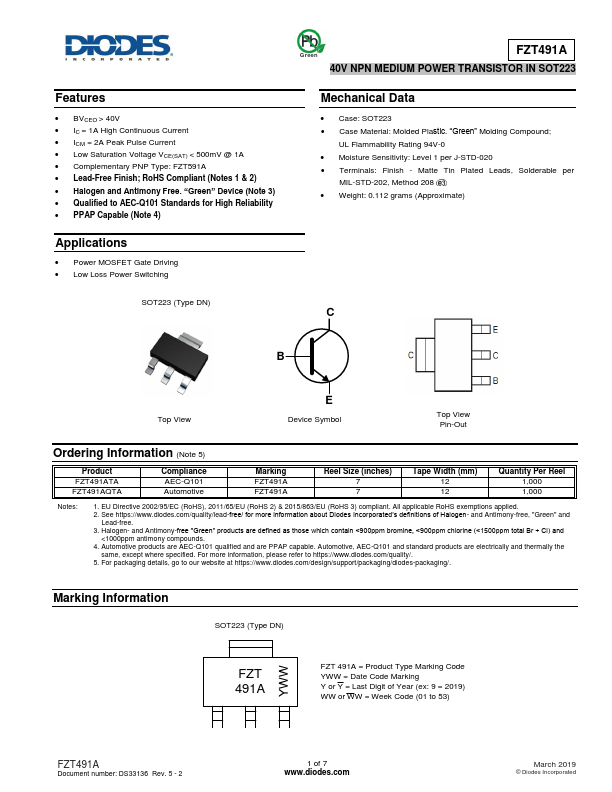

FZT491A Overview
Features BVCEO > 40V IC = 1A High Continuous Current ICM = 2A Peak Pulse Current Low Saturation Voltage VCE(SAT) < 500mV @ 1A plementary PNP Type: FZT591A Lead-Free Finish; RoHS pliant (Notes 1 & 2) Halogen and Antimony Free.
FZT491A Key Features
- BVCEO > 40V
- IC = 1A High Continuous Current
- ICM = 2A Peak Pulse Current
- Low Saturation Voltage VCE(SAT) < 500mV @ 1A
- plementary PNP Type: FZT591A
- Lead-Free Finish; RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable (Note 4)
FZT491A Applications
- Matte Tin Plated Leads, Solderable per
