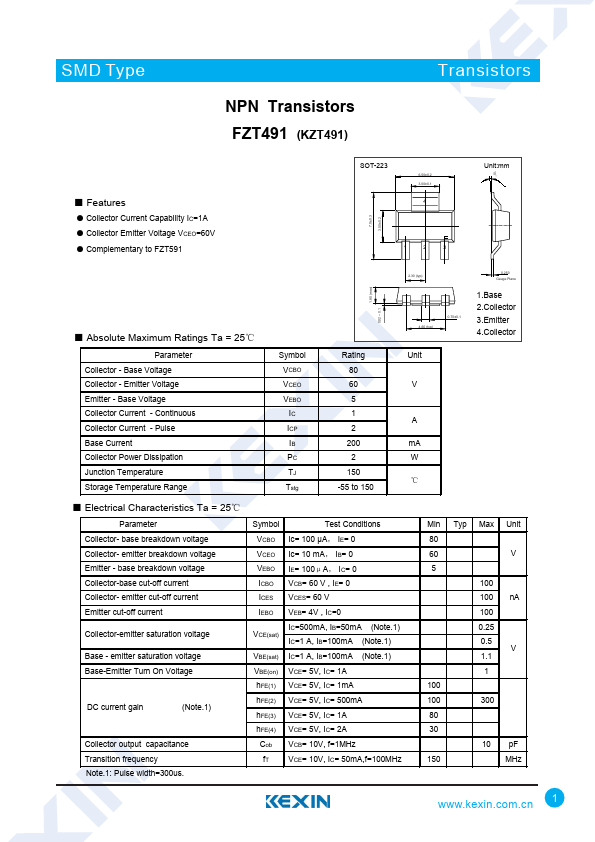

Features - Collector Current Capability IC=1A - Collector Emitter Voltage VCEO=60V - plementary to FZT591 SOT-223 6.50±0.2 3.00±0.1 10b Unit:mm 7.0±0.3 3.50±0.2 - Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP IB PC TJ Tstg Rating 80 60 5 1 2 200 2 150 -55 to 150 1.80 (max) 0.02 ~ 0.1 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector Unit A m A W ℃ - Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Collector- emitter cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage Base-Emitter Turn On Voltage DC current...
