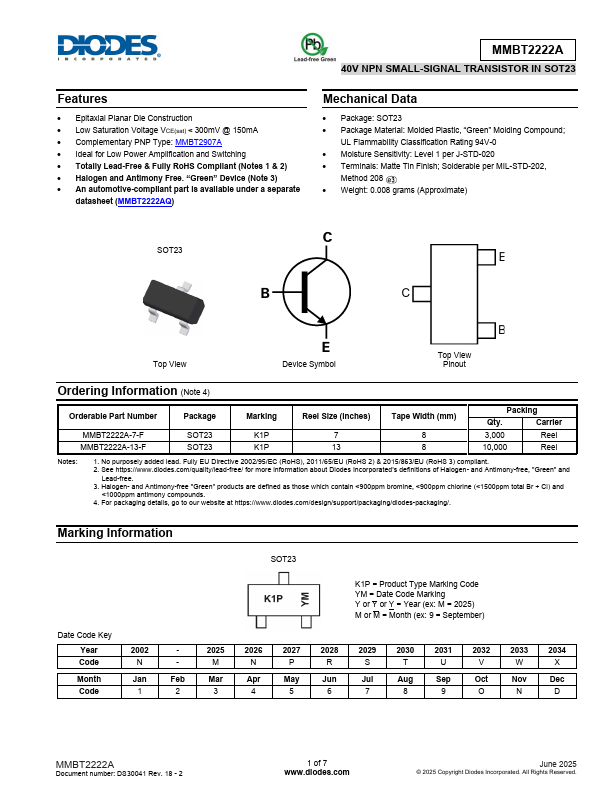

MMBT2222A - 40V NPN SMALL SIGNAL TRANSISTOR

Key Features

  • Epitaxial Planar Die Construction.
  • Low Saturation Voltage VCE(sat) < 300mV @ 150mA.
  • Complementary PNP Type: MMBT2907A.
  • Ideal for Low Power Amplification and Switching.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • An automotive-compliant part is available under a separate datasheet (MMBT2222AQ) Mechanical Data.
  • Package: SOT23.
  • Package Material: Molded P.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT2222A NPN Amplifier GME
MMBT2222A NPN Amplifier MCC
MMBT2222A NPN Transistor CITC
MMBT2222A NPN EPITAXIAL SILICON TRANSISTOR MIC
MMBT2222A NPN Transistor Cystech Electonics

Other Datasheets by Diodes Incorporated

Part Number Description
MMBT2222ALP4 NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
MMBT3904 40V NPN SMALL SIGNAL TRANSISTOR
MMBT3904FA NPN SMALL SIGNAL TRANSISTOR
MMBT3904FZ NPN SMALL SIGNAL TRANSISTOR
MMBT3904LP 40V NPN SMALL SIGNAL TRANSISTOR

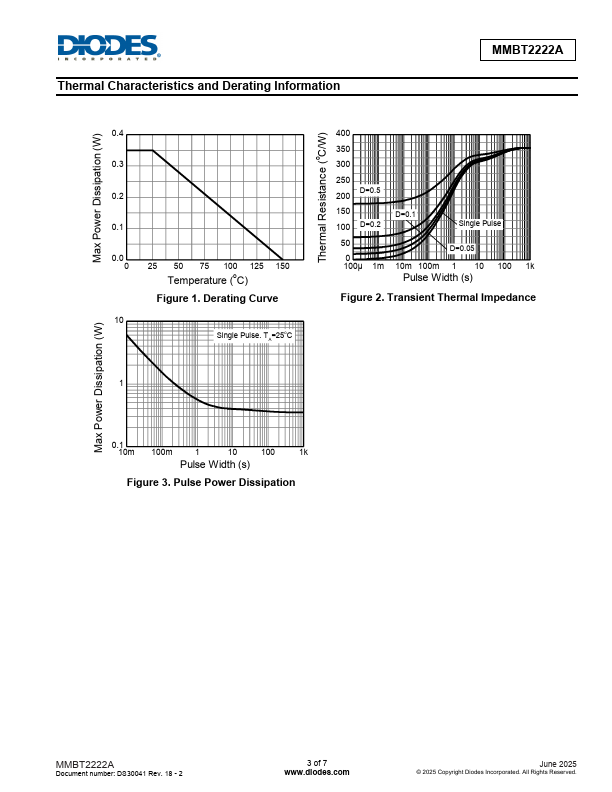

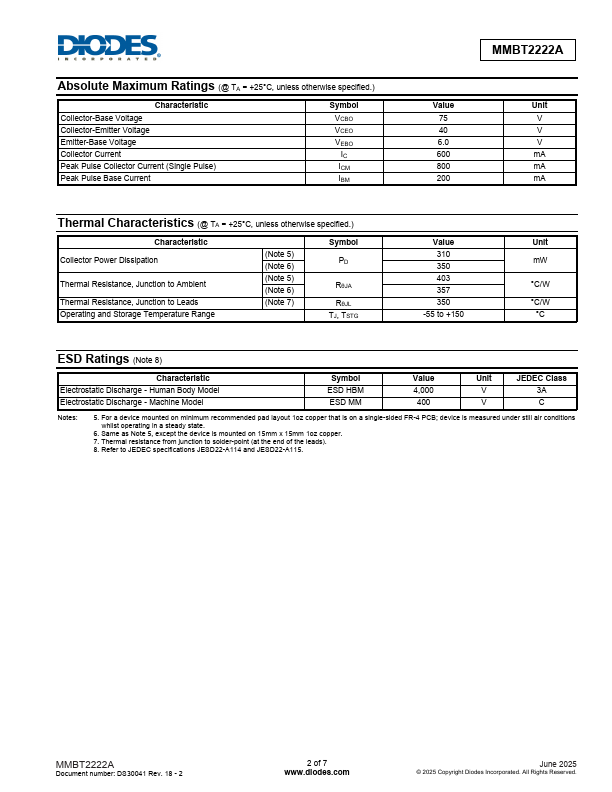

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MMBT2222A 40V NPN SMALL-SIGNAL TRANSISTOR IN SOT23 Features • Epitaxial Planar Die Construction • Low Saturation Voltage VCE(sat) < 300mV @ 150mA • Complementary PNP Type: MMBT2907A • Ideal for Low Power Amplification and Switching • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • An automotive-compliant part is available under a separate datasheet (MMBT2222AQ) Mechanical Data • Package: SOT23 • Package Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Matte Tin Finish; Solderable per MIL-STD-202, Method 208 • Weight: 0.
