MMBT3906 - 40V PNP SMALL SIGNAL TRANSISTOR

Key Features

  • Epitaxial Planar Die Construction.
  • Ideal for Medium Power Amplification and Switching.
  • Complementary NPN Type: MMBT3904.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • An automotive-compliant part is available under a separate datasheet (MMBT3906Q) SOT23 Mechanical Data.
  • Package: SOT23.
  • Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT3906 PNP Transistor CITC
MMBT3906 PNP Transistor GOOD-ARK
MMBT3906 PNP General-Purpose Amplifier ON Semiconductor
MMBT3906 SMALL SIGNAL PNP TRANSISTOR STMicroelectronics
MMBT3906 PNP General Purpose Amplifier Fairchild

Other Datasheets by Diodes Incorporated

Part Number Description
MMBT3906FA PNP SMALL SIGNAL TRANSISTOR
MMBT3906FZ PNP SMALL SIGNAL TRANSISTOR
MMBT3906LP 40V PNP SMALL SIGNAL TRANSISTOR
MMBT3904 40V NPN SMALL SIGNAL TRANSISTOR
MMBT3904FA NPN SMALL SIGNAL TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

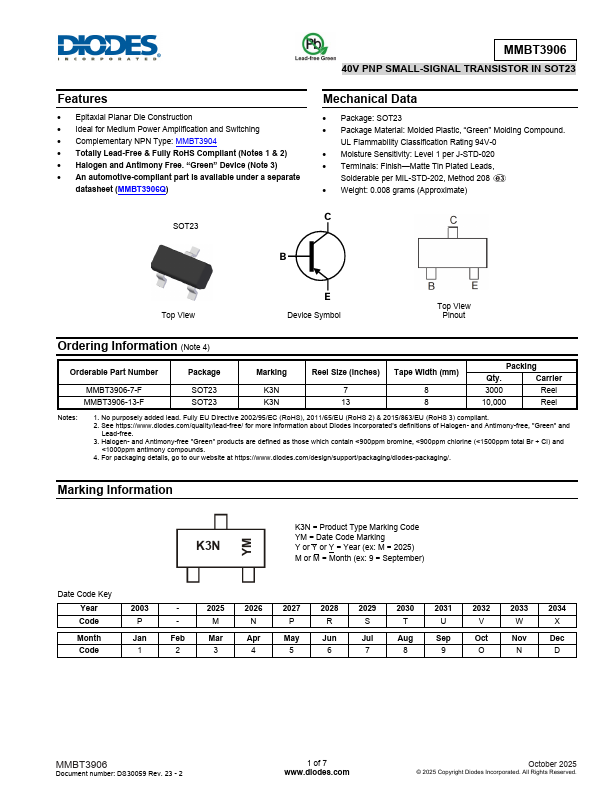

MMBT3906 40V PNP SMALL-SIGNAL TRANSISTOR IN SOT23 Features • Epitaxial Planar Die Construction • Ideal for Medium Power Amplification and Switching • Complementary NPN Type: MMBT3904 • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • An automotive-compliant part is available under a separate datasheet (MMBT3906Q) SOT23 Mechanical Data • Package: SOT23 • Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish—Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight: 0.
