SBR12U100P5 - SUPER BARRIER RECTIFIER

Key Features

  • Ultra Low Forward Voltage Drop.
  • Excellent High Temperature Stability.
  • Patented Super Barrier Rectifier Technology.
  • Soft, Fast Switching Capability.
  • +150°C Operating Junction Temperature.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) SBR12U100P5 12A SBR® Green SUPER.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SBR12040 (SBR12040 - SBR12050) 120 AMP SCHOTTKY RECTIFIER Microsemi Corporation
SBR12045 (SBR12040 - SBR12050) 120 AMP SCHOTTKY RECTIFIER Microsemi Corporation
SBR12050 (SBR12040 - SBR12050) 120 AMP SCHOTTKY RECTIFIER Microsemi Corporation
SBR120S3 SUPER BARRIER RECTIFIER Dionics
SBR12100 Schottky Barrier Rectifiers LRC

Other Datasheets by Diodes Incorporated

Part Number Description
SBR12U100P5Q SUPER BARRIER RECTIFIER
SBR12U120P5 SUPER BARRIER RECTIFIER
SBR12U45LH SUPER BARRIER RECTIFIER
SBR12U45LH1 SUPER BARRIER RECTIFIER
SBR12A45SD1 SUPER BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

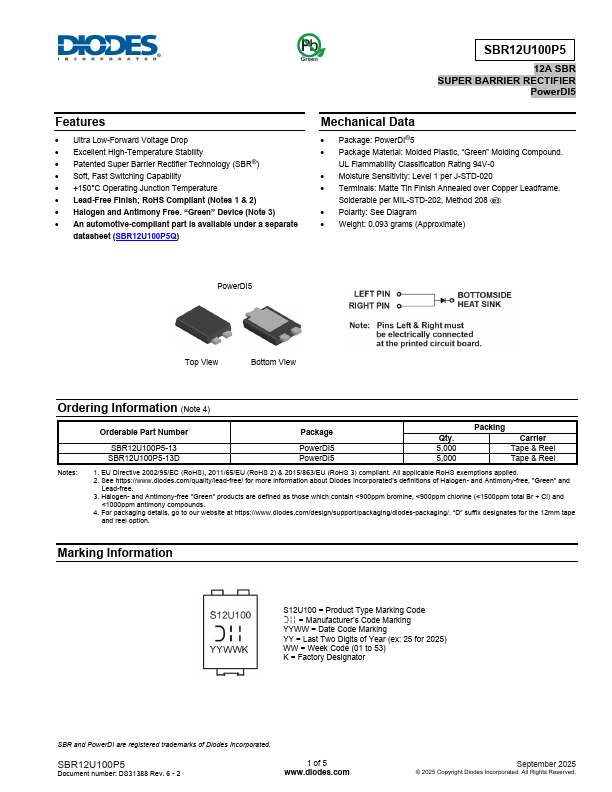

NEW PRODUCT Features  Ultra Low Forward Voltage Drop  Excellent High Temperature Stability  Patented Super Barrier Rectifier Technology  Soft, Fast Switching Capability  +150°C Operating Junction Temperature  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) SBR12U100P5 12A SBR® Green SUPER BARRIER RECTIFIER POWERDI® Mechanical Data  Case: POWERDI5  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208  Polarity: See Diagram  Weight: 0.
