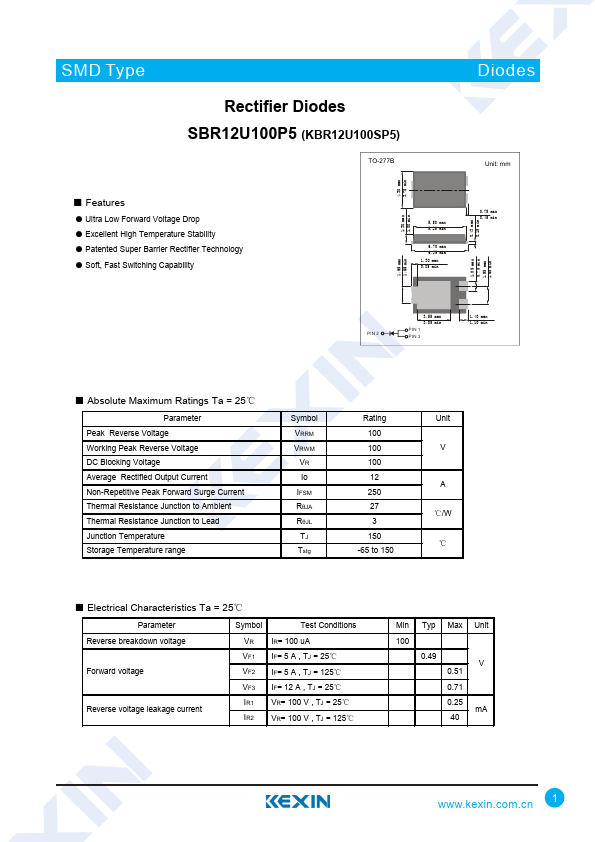

SBR12U100P5
SBR12U100P5 is Rectifier Diodes manufactured by Kexin Semiconductor.
SMD Type
Rectifier Diodes SBR12U100P5 (KBR12U100SP5)
TO-277B
Diodes
Unit: mm
4.30 max 3.75 min
- Features
- Ultra Low Forward Voltage Drop
- Excellent High Temperature Stability
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
1.30 max 1.00 min
5.50 max 5.25 min
6.70 max 6.35 min 1.30 max 0.85 min
0.43 max 0.15 min
0.75 max 0.45 min
1.05 max 0.75 min 1.95 max 1.65 min
1.95 max 1.65 min
PIN 2
3.55 max 3.05 min
PIN 1 PIN 3
1.40 max 1.10 min
-...
