SBR3A40SA - SUPER BARRIER RECTIFIER

Features

  • Low Leakage Current.
  • Patented Super Barrier Rectifier Technology.
  • Soft, Fast Switching Capability.
  • +150°C Operating Junction Temperature.
  • Lead Free Finish, RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • SBR3A40SAQ Qualified to AEC-Q101 standards for High Reliability. Mechanical Data.
  • Case: SMA.
  • Case Material: Molded Plastic, “Green” Molding compound. UL Flammability Classification Rating 94V-0.
  • Moisture Sensit.

📥 Download Datasheet

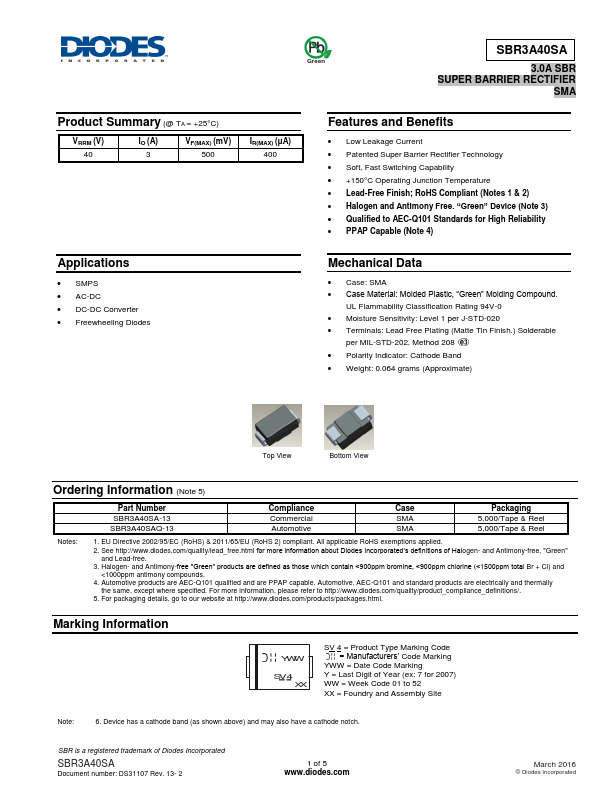

Datasheet preview – SBR3A40SA

Datasheet Details

Part number SBR3A40SA
Manufacturer DIODES
File Size 97.89 KB
Description SUPER BARRIER RECTIFIER
Datasheet download datasheet SBR3A40SA Datasheet

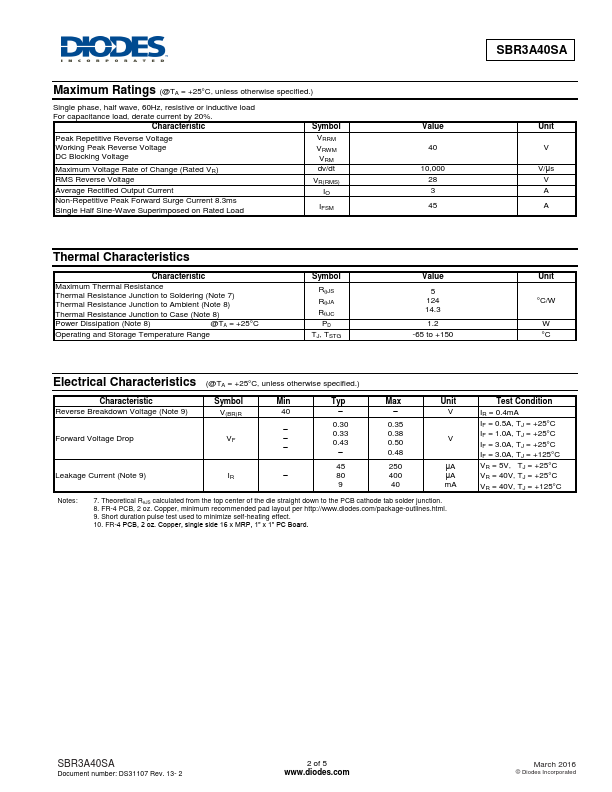

Additional preview pages of the SBR3A40SA datasheet.

📁 Similar Datasheet

  • SBR30 - (SBR05 - SBR30) Standard Recovery 1-Phase Silicon Bridge Rectifier Assembly (Semtech Corporation)
  • SBR30100CT - Super Barrier Rectifier (Diodes Incorporated)
  • SBR30100CT - Trench Schottky Barrier Rectifier (GOOD-ARK)
  • SBR30100CTFP - Super Barrier Rectifier (Diodes Incorporated)
  • SBR30120CT - Trench Schottky Barrier Rectifier (GOOD-ARK)
  • SBR30150 - 30.0 AMP Schottky Barrier Rectifiers (SeCoS)
  • SBR30150CT - SCHOTTKY RECTIFIER (SMC-Diode)
  • SBR30150CT - Super Barrier Rectifier (Diodes Incorporated)
  • SBR30150CT - Schottky Barrier Rectifier (INCHANGE)
  • SBR30150CT - Trench Schottky Barrier Rectifier (GOOD-ARK)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
  Green SBR3A40SA 3.0A SBR® SUPER BARRIER RECTIFIER SMA Features  Low Leakage Current  Patented Super Barrier Rectifier Technology  Soft, Fast Switching Capability  +150°C Operating Junction Temperature  Lead Free Finish, RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  SBR3A40SAQ Qualified to AEC-Q101 standards for High Reliability. Mechanical Data  Case: SMA  Case Material: Molded Plastic, “Green” Molding compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020D  Terminals: Lead Free Plating (Matte Tin Finish.) Solderable per MIL-STD-202, Method 208  Polarity Indicator: Cathode Band  Marking Information: See Page 3  Ordering Information: See Page 3  Weight: 0.
