SD05 - UNI-DIRECTIONAL SURFACE MOUNT TVS

Key Features

  • 350 Watts Peak Pulse Power (tp = 8x20μs).
  • IEC 61000-4-2 (ESD): Air.
  • 15kV, Contact.
  • 8kV.
  • IEC 61000-4-2 (ESD), HBM.
  • 16kV.
  • IEC61000-4-4 (EFT): Level 4, 40A.
  • IEC61000-4-5 (Lightning): 24A.
  • Unidirectional Configuration.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability SOD323 SD05 UNI-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD05 Single Line TVS Diode SEMTECH
SD05 500W Unidirectional TVS Diode Leiditech
SD05 STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY KD
SD05 Unidirectional TVS Diode UDF
SD0504-xxx Surface Mount Power Choke Associated Components Technology

Other Datasheets by Diodes Incorporated

Part Number Description
SD05C 640W BIDIRECTIONAL TVS DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

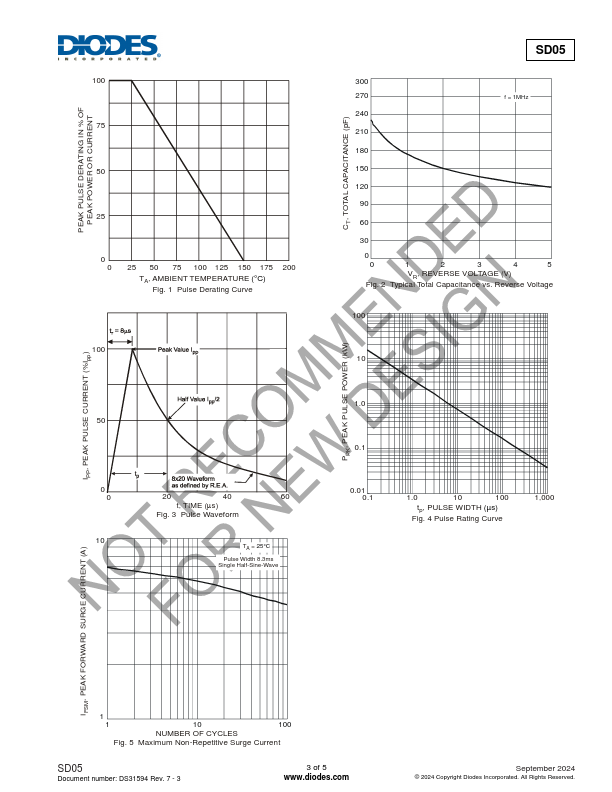

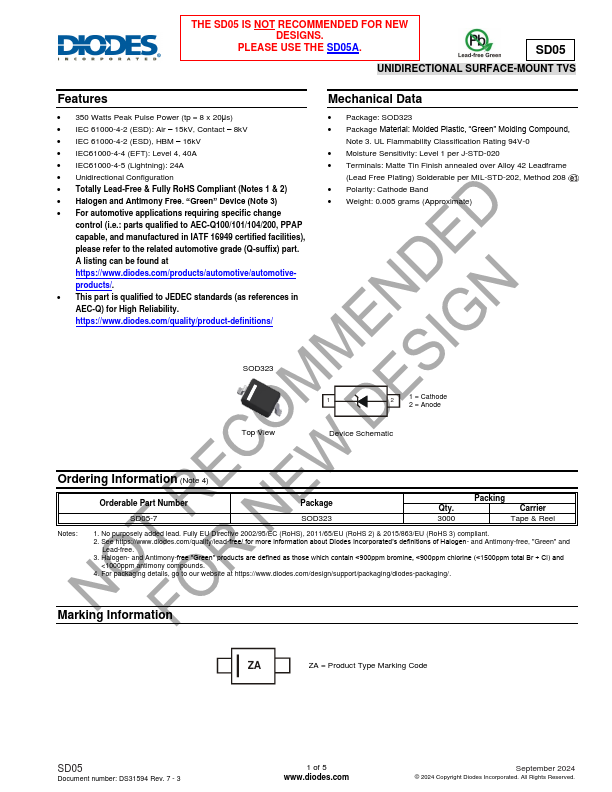

Features  350 Watts Peak Pulse Power (tp = 8x20μs)  IEC 61000-4-2 (ESD): Air – 15kV, Contact – 8kV  IEC 61000-4-2 (ESD), HBM – 16kV  IEC61000-4-4 (EFT): Level 4, 40A  IEC61000-4-5 (Lightning): 24A  Unidirectional Configuration  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability SOD323 SD05 UNI-DIRECTIONAL SURFACE MOUNT TVS Mechanical Data  Case: SOD323  Case Material: Molded Plastic, “Green” Molding Compound, Note 3. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating) Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.
