SD05 Key Features
- 15kV, Contact
- 8kV ƽ 61000-4-4 (EFT): 40A
- 5/50ns ƽ 61000-4-5 (Surge): 12A, 8/20μs
- Level 1(Line-Ground) & Level 2(Line-Line)
- Part: SD05
- Manufacturer: Kexin Semiconductor (official site)
- Size: 149.89 KB
Other SD05 Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
Diodes Incorporated |
SD05 | UNIDIRECTIONAL SURFACE-MOUNT TVS |
SEMTECH |
SD05 | Single Line TVS Diode |
Leiditech |
SD05 | 500W Unidirectional TVS Diode |
KD |
SD05 | STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY |
| UDF UDF |
SD05 | Unidirectional TVS Diode |
SD05 Description

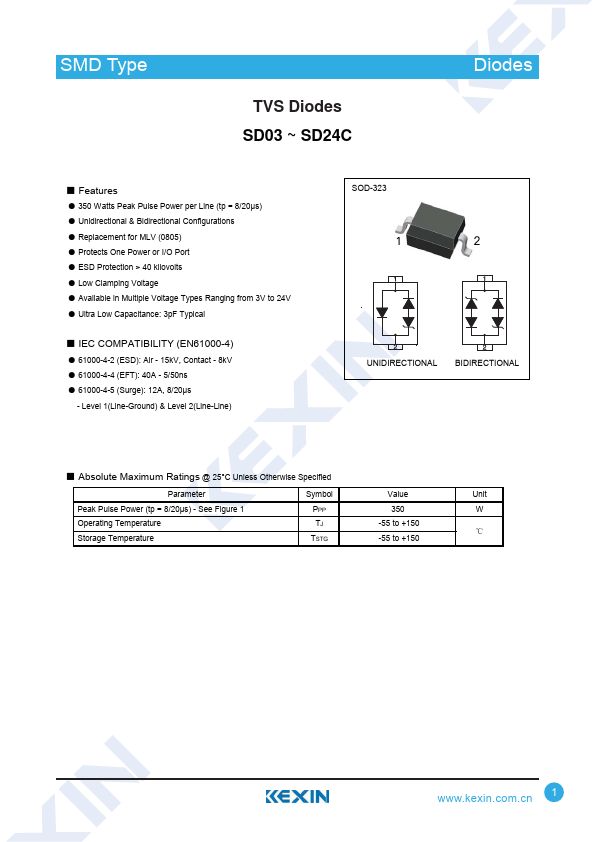

SMD Type TVS Diodes SD03 ~ SD24C T Diodes.
