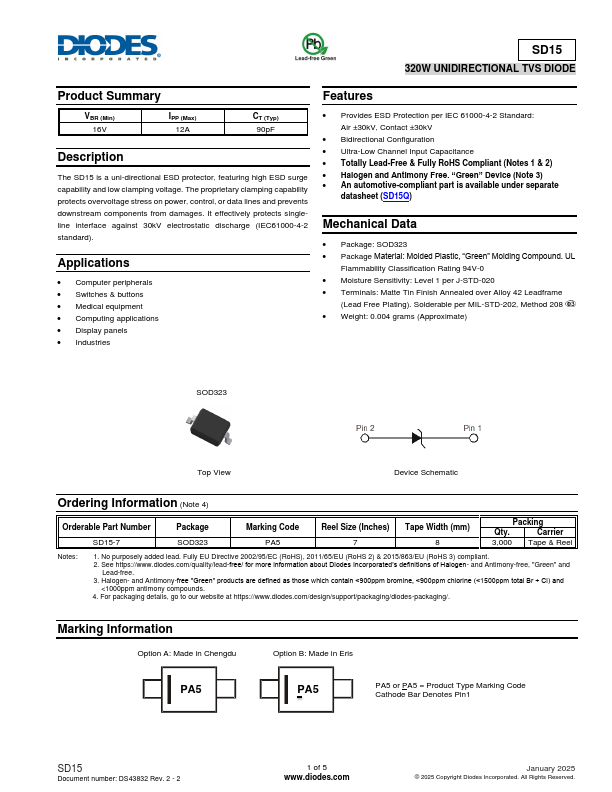

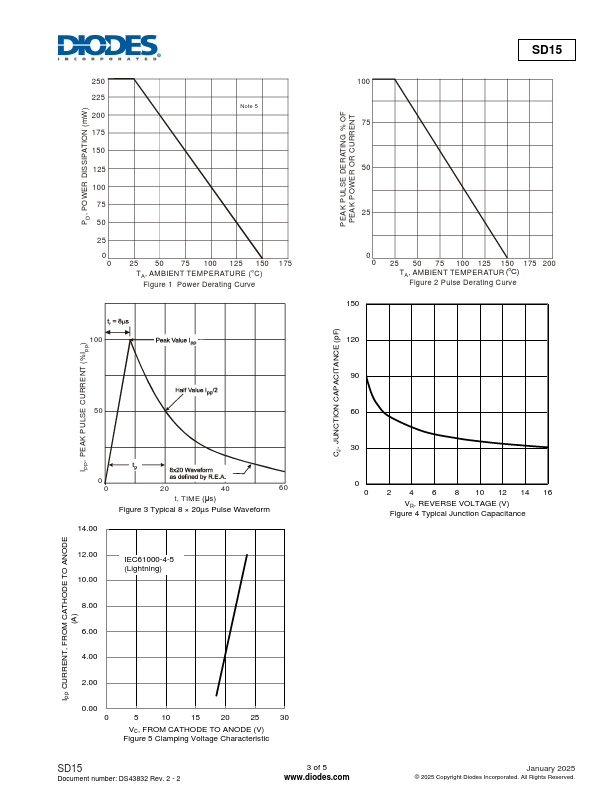

Diodes Incorporated SD15
The SD15 is a uni-directional ESD protector, featuring high ESD surge capability and low clamping voltage. The proprietary clamping capability protects overvoltage stress on power, control, or data lines and prevents downstream components from damages. It effectively protects singleline interface against 30kV electrostatic discharge (IEC61000-4-2 standard).| Part No. | SD15 |
|---|---|
| Datasheet | SD15 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 320W UNIDIRECTIONAL TVS DIODE |
| Buy | Stock & Price |
DESCRIPTION
APPLICATIONS
● Computer peripherals● Switches & buttons
● Medical equipment
● Computing applications
● Display panels
● Industries
FEATURES
● Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV● Bidirectional Configuration
● Ultra-Low Channel Input Capacitance
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● An automotive-compliant part is available under separate datasheet (SD15Q)
MECHANICAL DATA
● Package: SOD323● Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
● Weight: 0.004 grams (Approximate) SOD323 Top View Device Schematic Ordering Information (Note 4) Orderable Part Number SD15-7 Package SOD323 Marking Code PA5 Reel Size (Inches) 7 Tape Width (mm) 8 Packing Qty.
