Kexin Electronics SD15
TVS Diodes
| Part No. | SD15 |
|---|---|
| Datasheet | SD15 Download |
| Manufacturer | Kexin Electronics |
| Description | TVS Diodes |
| Buy | Stock & Price |

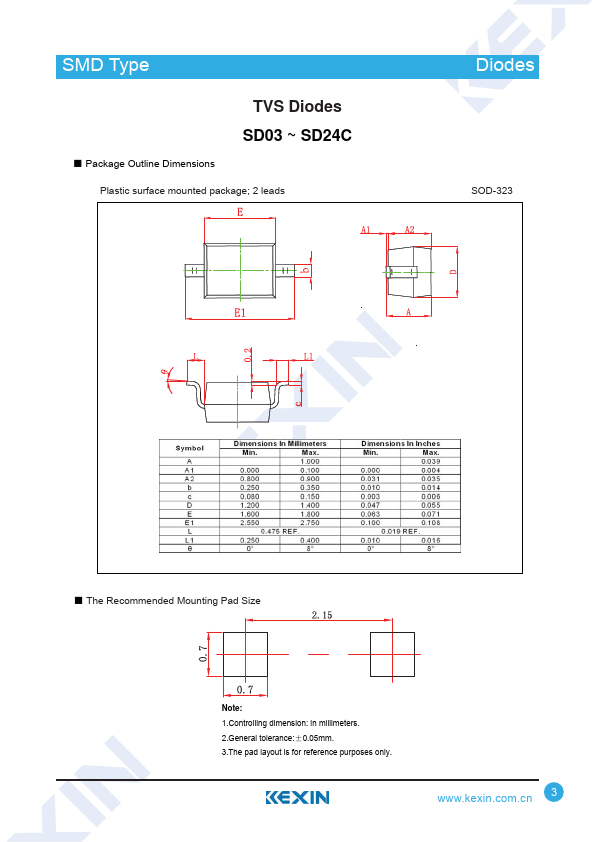

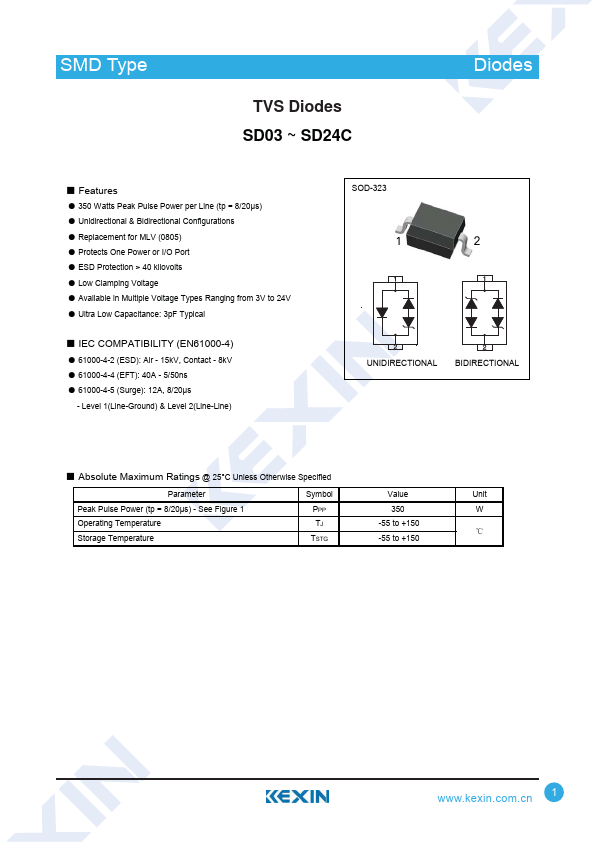

FEATURES
ƽ 350 Watts Peak Pulse Power per Line (tp = 8/20μs) ƽ Unidirectional & Bidirectional Configurations ƽ Replacement for MLV (0805) ƽ Protects One Power or I/O Port ƽ ESD Protection > 40 kilovolts ƽ Low Clamping Voltage ƽ Available in Multiple Voltage Types Ranging from 3V to 24V ƽ Ultra Low Capacitance: 3pF Typical Ƶ IEC COMPATIBILITY (EN61000-4) ƽ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ƽ 61000-4-4 (EFT): 40A - 5/50ns ƽ 61000-4-5 (Surge): 12A, 8/20μs - Level 1(Line-Ground) & Level 2(Line-Line) SOD-323 1 2 UNIDIRECTIONAL BIDIRECTIONAL ƵABSOLUTE MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified Parameter Peak Pulse Power (tp = 8/20μs) - See Figure 1 Operating Temperature Storage Temperature Symbol Value Unit PPP 350 W TJ -55 to +150 ć TSTG -55 to +150 1 SMD Type T Diodes TVS Diodes SD03 ~ SD24C ƵELECTRICAL CHARACTERISTICS
Per Line @ 25°C Unless Otherwise Specified PART NUMBER (See Note 1 & Note 2) DEVICE MARKING RATED STAND-OFF VOLTAGE MINIMUM BREAKDOWN VOLTAGE MAXIMUM CLAMPING VOLTAGE (See Fig.
