SM5406
SM5406 is Standard Recovery SMD Rectifier Diodes manufactured by Diotec Semiconductor.
- Part of the SM5400 comparator family.
- Part of the SM5400 comparator family.

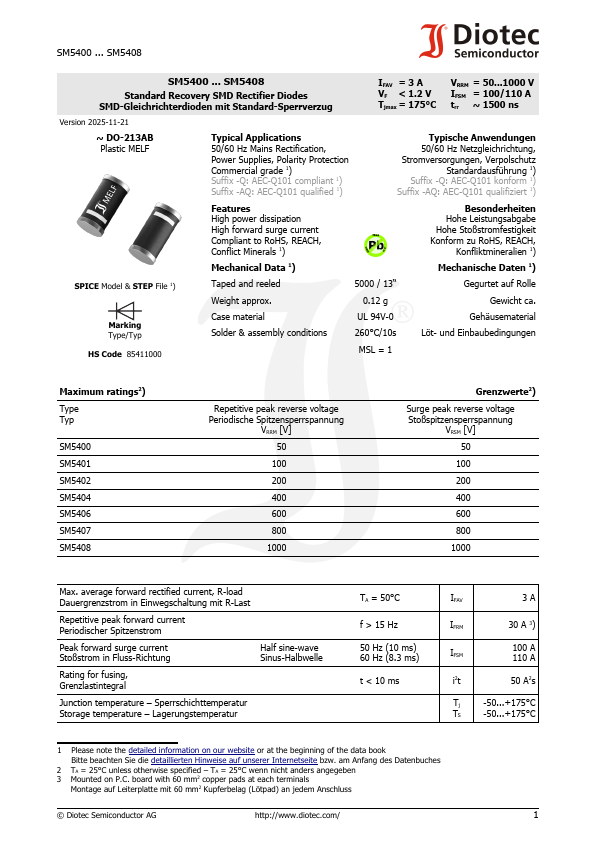

SM5400 ... SM5408
SM5400 ... SM5408 Standard Recovery SMD Rectifier Diodes SMD-Gleichrichterdioden mit Standard-Sperrverzug
IFAV = 3 A VF < 1.2 V Tjmax = 175°C
VRRM = 50...1000 V IFSM = 100/110 A trr ~ 1500 ns
Version 2025-11-21
~ DO-213AB Plastic MELF
Typical Applications 50/60 Hz Mains Rectification, Power Supplies, Polarity Protection mercial grade 1) Suffix -Q: AEC-Q101 pliant 1) Suffix -AQ: AEC-Q101 qualified 1)
Typische Anwendungen 50/60 Hz Netzgleichrichtung, Stromversorgungen, Verpolschutz
Standardausführung 1) Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: AEC-Q101 qualifiziert 1)
Features
Besonderheiten
High power dissipation
Hohe Leistungsabgabe
High forward surge...
