SM5407 Datasheet Standard Recovery Smd Rectifier Diodes

Manufacturer: Diotec Semiconductor

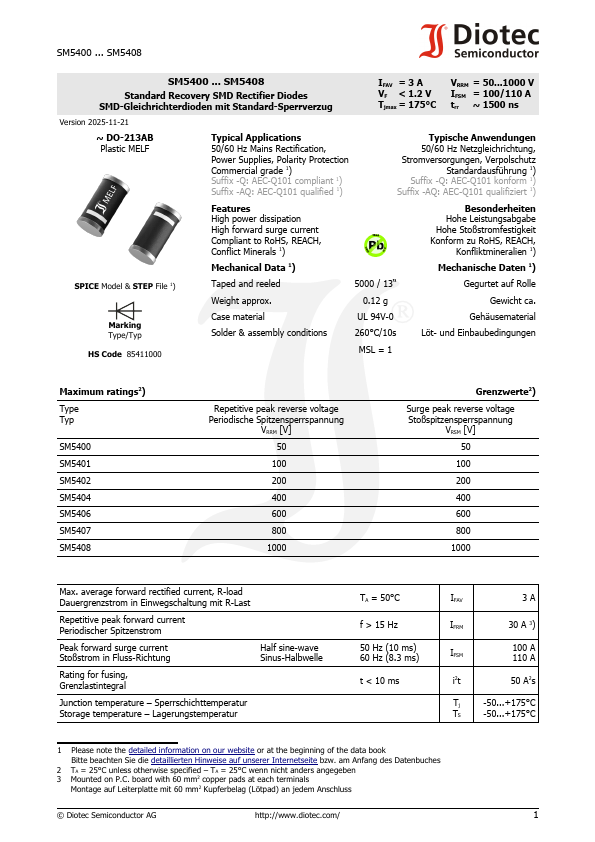

Overview: SM5400 ... SM5408 SM5400 ... SM5408 Standard Recovery SMD Rectifier Diodes SMD-Gleichrichterdioden mit Standard-Sperrverzug IFAV = 3 A VF < 1.2 V Tjmax = 175°C VRRM = 50...

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Besonderheiten High power dissipation Hohe Leistungsabgabe High forward surge current Hohe Stoßstromfestigkeit Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) SPICE Model & STEP File 1) Taped and reeled Weight approx. 5000 / 13“ 0.12 g Gegurtet auf Rolle Gewicht ca. Marking Type/Typ HS Code 85411000 Case material Solder & assembly conditions UL 94V-0 260°C/10s MSL = 1 Gehäuse.
